Start with the cable, not the printer. The right label depends first on whether the cable is already terminated, how large it is, what the label will face, and how the identifier needs to be read. Only after those questions are settled should printer features enter the decision.
Use the table below as a fast cable label selector. It gives you a sensible starting format, not a universal product recommendation. The exact part number still has to fit the object and carry the properties your environment requires.
Quick cable label selector
| Your job | Start with | Verify before ordering |
|---|---|---|
| Unterminated cable or wire | Printable heat-shrink sleeve | Approved cable-diameter range, supplied and recovered dimensions, environment, and printer compatibility |
| Installed or preterminated cable | Self-laminating wrap | Cable-diameter range, printable zone, clear overwrap, adhesive, and exposure claims |
| Small cable that needs a larger readable legend | Cable flag | Available clearance, snag risk, viewing direction, and media durability |
| Large cable or bundle | Tie-on tag | Tag and tie material, attachment security, movement, clearance, and exposure |
| Patch panel, terminal block, or faceplate | Spacing-specific strip or die-cut label | Port pitch, available area, template support, surface, and label volume |
| Enclosure or equipment surface | Adhesive equipment label | Surface texture, adhesive, label area, environment, and project requirements |
If you are choosing between two plausible methods, keep reading. The installation stage and physical fit usually eliminate more options than brand, price, or printer popularity.

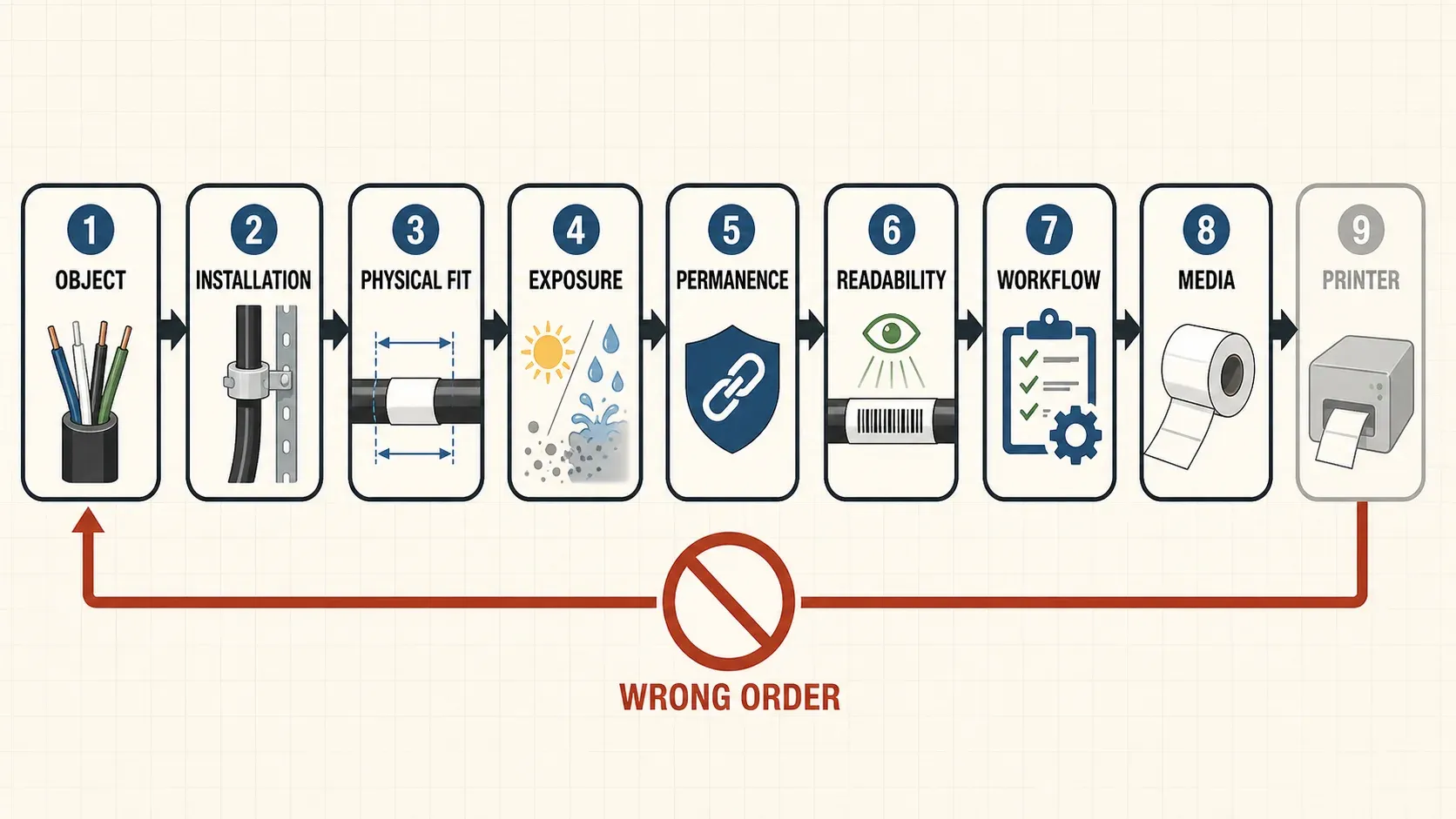

Make the decision in this order
1. Identify the object
A cable, cable bundle, patch panel, terminal block, faceplate, and equipment enclosure are different labeling jobs.
Do not force a patch panel through cable-wrap logic. It needs a label that fits the available strip or port spacing, plus a workflow that keeps repeated identifiers aligned. A bundle may need a tag large enough to read without rotating the cables. A single wire may need a low-profile sleeve that does not obstruct routing.
2. Check the installation stage
For an open-ended wire, printable heat shrink is available as an option because the sleeve can be installed before the connector or lug.
For an installed cable, begin with a self-laminating wrap, flexible wrap, flag, or tag. Heat shrink remains possible only if the supplied tube can pass over every obstruction and then recover correctly onto the smaller cable. That is a geometry question, not a preference.
Our heat-shrink versus self-laminating guide examines that choice in more detail.
3. Measure the actual outside diameter
Wire gauge describes the conductor. A cable label fits around the insulation or outer jacket, whose thickness varies by construction. Measure the outside diameter of the object you will label instead of estimating it from AWG or cable category.
Published sizing ranges can be narrow. Brother specifies its 5.2 mm HSE211EG 3:1 heat-shrink tube for cable diameters from 0.8 to 3.1 mm.[1] Epson’s current shrink-tube table lists the 211 series for roughly 5.8 to 10.4 mm cable diameters, along with a nominal tube size, AWG range, and shrink ratio.[2]
These examples are not interchangeable recommendations. They show why the exact media table matters.
4. Measure anything the sleeve must pass over
If a connector, boot, lug, or ferrule is already fitted, measure its largest cross-section. A 3:1 ratio does not guarantee that a sleeve fits over it. The ratio describes recovery after heating; it does not enlarge the supplied opening.
A heat-shrink part is viable only when:
- Its supplied opening clears the largest obstruction.
- Its approved cable range includes the cable outside diameter.
- Its recovered size produces the fit specified by the manufacturer.
- Its documented material properties suit the environment.
If you cannot confirm all four, choose a wrap, flag, or tag instead of improvising with an oversized sleeve.
5. Decide how the identifier must be read
A low-profile wrap is effective for close service identification. A flag provides more printable area and presents the legend from a predictable direction, but it protrudes from the cable. A tag can carry a large identifier on a bundle, although it may move or snag.
Consider:
- viewing distance
- required text, barcode, or symbol size
- whether the cable can be rotated
- clearance around adjacent cables and ports
- movement and snag risk
- how often the identifier may change
6. Treat the environment as a hard requirement
Do not assume that every product called industrial, vinyl, laminated, or polyolefin has the same durability. Similar-looking media can use different films, adhesives, overlaminates, and test claims.
HellermannTyton, for example, lists a Rite-On self-laminating product for indoor and outdoor use while also marking it as not UV resistant.[5] That is not necessarily a contradiction: a product can tolerate some outdoor conditions without carrying a UV-resistance claim. It does mean that “outdoor” alone is not enough evidence for prolonged sunlight exposure.
Printable tubing varies too. TE Connectivity separates tubing families by characteristics such as temperature, fluids, fire performance, and low-smoke requirements.[6] Check the exact family or part number against the actual exposure.
Compare the six common methods
| Method | Where it works well | Common reason to reject it |
|---|---|---|
| Heat-shrink sleeve | Low-profile identification on a cable that can accept a sleeve before termination | Cannot pass over an existing connector, or cannot recover tightly enough onto the cable |
| Self-laminating wrap | Retrofit labeling on installed cables, with a clear section protecting the printed legend | Cable diameter falls outside the approved range or the clear tail cannot cover the print fully |
| Flexible wrap tape | Curved surfaces where conformability matters and a full self-laminating construction is unnecessary | Edges lift, adhesive does not suit the jacket, or abrasion reaches the printed surface |
| Cable flag | Longer identifiers, barcodes, or one-direction reading on a small cable | The protruding flag can snag, fold, or interfere with service |
| Tie-on tag | Large cables, bundles, or cases where adhesive contact is undesirable | The tag or tie can snag, move, loosen, or use a material unsuited to the exposure |
| Panel or terminal label | Repeated ports, blocks, faceplates, and flat equipment-identification areas | Incorrect spacing, unsuitable adhesive, or a workflow that cannot keep repeated identifiers aligned |
Heat-shrink sleeves
Printable heat shrink provides a tidy, low-profile marker and is especially practical during cable assembly. Its weakness is installation sequence: a sleeve normally has to go onto the cable before the end is terminated.
The shrink ratio is only one dimension. Also verify the supplied opening, recovered size, approved cable range, printable area, service temperature, and any required fluid, flame, sunlight, or certification properties.
If this is the format you need, our heat-shrink label-maker guide compares compatible printer workflows and explains the sizing checks in more detail.
Self-laminating wraps
A self-laminating label has a printable section and a clear tail that wraps over the legend. It can be applied to a terminated cable, making it a strong retrofit option.
The clear tail must be long enough to cover the printed area and overlap as intended. Use the manufacturer’s approved diameter range or sizing tool. Brady, for example, provides a calculator specifically for matching self-laminating labels to wire diameter.[4]
Do not infer printer compatibility from a 24 mm width alone. Epson explicitly lists its 224VSLPX self-lamination overwrap for particular models, including the LW-PX400.[3] Another printer that accepts ordinary 24 mm tape does not automatically accept the same media construction or cartridge.
Flags and flexible wraps
Use a flag when the cable is too small for a readable wrap legend or when the identifier must face one direction. Check that it will not interfere with a dense patch field, moving harness, door, fan, or service path.
A flexible wrap can conform to curved surfaces without the protrusion of a flag. Its adhesive and abrasion resistance still need to suit the cable jacket and environment.
Tie-on tags
Tags work well when the cable or bundle exceeds available wrap sizes, when adhesive contact is undesirable, or when a large readable area is required. Check the tag and tie as a system. A durable tag attached with an unsuitable tie is not a durable identification method.
Panel and equipment labels
For a patch panel, terminal block, faceplate, breaker panel, or enclosure, measure the available flat area and any repeated spacing. Then determine whether the job needs a continuous strip, die-cut labels, a terminal-block template, or a separate directory workflow.
A printer template can improve spacing and consistency. It does not by itself make the finished identification compliant with a project specification or standard.
Verify the media, not just the method
| Media fact | Why it matters | Where to confirm it |
|---|---|---|
| Cable-diameter range | Controls whether a sleeve or wrap fits and stays in place | Exact product page, sizing calculator, or technical data sheet |
| Supplied and recovered tube size | Controls both pass-over clearance and the final fit of heat shrink | Manufacturer tubing table for the exact part number |
| UV and weathering | Outdoor use language does not automatically establish UV resistance | Product data sheet or manufacturer performance statement |
| Chemical resistance | Resistance depends on the specific chemical, concentration, and media construction | Manufacturer chemical-resistance data for the exact media |
| Temperature range | Application temperature and service temperature may be different | Technical data sheet, including adhesive limits where applicable |
| Printer compatibility | Matching width alone does not mean a printer accepts the cartridge or media family | Current manufacturer consumables list for the exact printer model |
Missing data is a reason to verify, not proof that a product passes or fails. If a manufacturer does not publish resistance to a chemical you expect on site, ask for the current technical data or use a project-approved material rather than relying on the product-family name.
Certification language also needs care. UL’s insulating-tubing program evaluates component tubing to applicable requirements, including ANSI/UL 224 categories.[7] A recognized tube can help satisfy a product or project requirement, but it does not certify the workmanship or compliance of an entire field installation.
Choose the printer last
Once you know the method and exact media family, turn those requirements into a printer shortlist.
Check:
- explicit compatibility with the exact cartridge, tube, or label family
- required media width
- standalone keyboard, phone, or computer workflow
- spreadsheet import and serialization
- barcode or QR-code support
- full cutting, half cutting, or manual cutting
- print resolution for small text and dense codes
- battery, case, and field-use requirements
For a small field job, a standalone keyboard may be faster than an app. For hundreds of serialized identifiers, data import and automatic cutting may matter more than ruggedness. A printer is suitable because it supports the chosen media and workflow, not because it is broadly marketed as industrial.
Once you know the label format and workflow you need, use the comparison that matches your work:
- Best label makers for electricians for panels, conductors, and field identification
- Best label makers for network cables for racks, ports, patch panels, and datacom workflows
- Best industrial label makers under $200 for budget-conscious platform selection
- Brady M210 versus Brother PT-E560 for standalone ruggedness versus connected batch work
- Brady M210 versus Epson LW-PX400 for two different field-labeling workflows
A final pre-purchase checklist
Before ordering media or a printer, write down:
- The object being labeled.
- Whether the cable is terminated.
- The cable or bundle outside diameter.
- The largest obstruction a sleeve must pass.
- The available label length or flat area.
- The required viewing distance and identifier content.
- The actual environmental exposures.
- The expected permanence and likelihood of changes.
- The number of labels and source of the label data.
- The exact media part number and compatible printer models.
If a project specification controls the work, it takes precedence over this general selection guide. Standards can also change. TIA announced another recirculation ballot and public review for the proposed TIA-606-E in June 2026,[8] so confirm the edition named by the current project instead of assuming that the newest draft applies.
For the broader identification framework, including label content, placement, materials, and printer ecosystems, see our complete cable and wire labeling guide.
FAQ (Frequently Asked Questions)
What is the best label type for an installed cable?
A correctly sized self-laminating wrap is usually the best starting point because it can be applied without removing the connector. A flag can provide more readable space, while a tie-on tag may suit a large cable or bundle. The exact media still needs to match the cable diameter and environment.
When should I use a heat-shrink cable label?
Use printable heat shrink when the sleeve can be installed before termination, or when it can pass over every existing connector and still recover within the manufacturer-approved cable-diameter range. Check the exact tubing dimensions and environmental properties rather than relying on shrink ratio alone.
Why do I need the cable outside diameter?
The label fits around the outside of the insulation or jacket, not the conductor. Two wires with the same gauge can have different outside diameters, so measure the actual cable and compare it with the approved range for the exact label or sleeve.
Does a 3:1 shrink ratio mean the tube fits over any connector?
No. The ratio describes how far the tube can recover after heating. The supplied tube must still be large enough to pass over the connector, boot, lug, or ferrule, and its recovered size must still suit the cable.
Can I choose cable-label media by material name alone?
No. Terms such as vinyl, polyester, polyolefin, laminated, and industrial do not establish UV, chemical, temperature, or abrasion performance. Verify those properties for the exact media family or part number.
Should I choose the printer or the cable label first?
Choose the label method and exact media first. Then select a printer that explicitly supports that media, its width, and the workflow features you need. Starting with the printer can lock you into supplies that do not fit the job.
