Brady M210 vs Epson LW-PX400: Standalone Field Tool or Connected Printer?

Buy the Brady M210 if the printer itself has to be the complete tool. Buy the Epson LW-PX400 if a phone or computer is already part of the tool and you want 24 mm media, imported label data, and automatic cutting. Everything else in this comparison follows from that one fork.

These are not two versions of the same product. The M210 is a self-contained handheld with a keypad and a screen, and it works with nothing else in your hands.^[1] The LW-PX400 has no display and no label-entry keyboard at all, so every label is created in Epson software on a phone, tablet, or computer and then sent to the printer.^[8]

Choose neither if you need both behaviors in one body, if you need automatic half cutting for long strips of sequential markers, if you need media wider than 24 mm, or if the job is high-volume production work rather than field identification.

The quick comparison

Brady M210 and Epson LW-PX400 compared on decision-relevant specifications
Criterion	Brady M210	Epson LW-PX400	Why it matters
Core workflow	Standalone handheld	Phone, tablet, or PC creates the label	This is the purchase decision, not a feature score
Keyboard and display	ABC keypad and LCD	No LCD, no label-entry keyboard	The PX400 cannot design a label by itself
Max media width	0.75 in (19.05 mm)	1 in (24 mm), from 4 mm up	Wider equipment labels, flags, and panel labels
Resolution	203 dpi	180 dpi	Small gap; media choice matters more
Print speed	About 10 mm/s	Up to 15 mm/s on AC power	Creation time usually dominates print time
Connectivity	None	USB and Bluetooth	Enables software, templates, and imported data
Data import	No	Yes	Decides how large sequential jobs feel
Serialization	Yes, on the keypad	Yes, up to 4 alphanumeric characters	Both can produce sequences
Cable wrap and flag	Built-in wire wrap and flag modes	Cable wrap and flag through Epson apps	Same output, different place to set it up
Barcodes and QR	QR, Data Matrix, Code 39, and Code 128	QR plus 9 barcode types through the apps	Asset and inventory marking
Cutter	Manual	Automatic full cut	Handling effort per label
Half cut	No	No	Neither produces strips on one backing
Heat shrink	M21 B-342 PermaSleeve	Series 203, 205, 208, 210, 211, 214	Sizing is per part number, not per printer
Self-laminating	M21 B-427 wraps	224VSLPX overwrap listed as compatible	Both ecosystems have a confirmed path
Power	Optional Li-ion battery, 6 AA, or AC adapter	AC adapter included, 6 AA not included	Field readiness costs different amounts
Ruggedness claim	6 ft drop, 250 lb crush, MIL-STD-810G shock	Drop-Guard cover included, no published drop rating found	Only one of these is a documented test claim
Volume guidance	About 100 labels per day	No comparable published figure found	Both are field tools, not production printers
Warranty	2 years	Lifetime warranty program, subject to terms	Long-term ownership cost

The biggest difference is workflow, not price

The printer-only prices are close enough that price alone should not decide this. At a July 28, 2026 check, Epson listed the LW-PX400 at $185.00 on its own store,^[8] while Brady’s direct pricing was approximately $99.99 for the M210 printer and approximately $199.99 for the M210-KIT.^[4] A bare printer and a complete kit are not the same purchase, which is why the complete-system cost section below matters more than any single sticker.

The real difference is where the label gets designed.

With the M210, the sequence is short: open the printer, type, print, cut. There is no pairing step, no app version, no cable, and no second battery to worry about.

With the LW-PX400, the sequence starts on a host device. Epson provides Label Editor for Windows, its newer Label Editor Software for Mac over USB, and the Label Editor Mobile, iLabel, and Datacom apps for iOS and Android.^[9]^[10] That host device is what gives you templates, saved layouts, barcodes, and imported data. It is also a dependency that has to be charged, unlocked, permitted, and usable at the job.

Neither arrangement is inherently more professional. One turns the printer into an appliance. The other turns it into a peripheral.

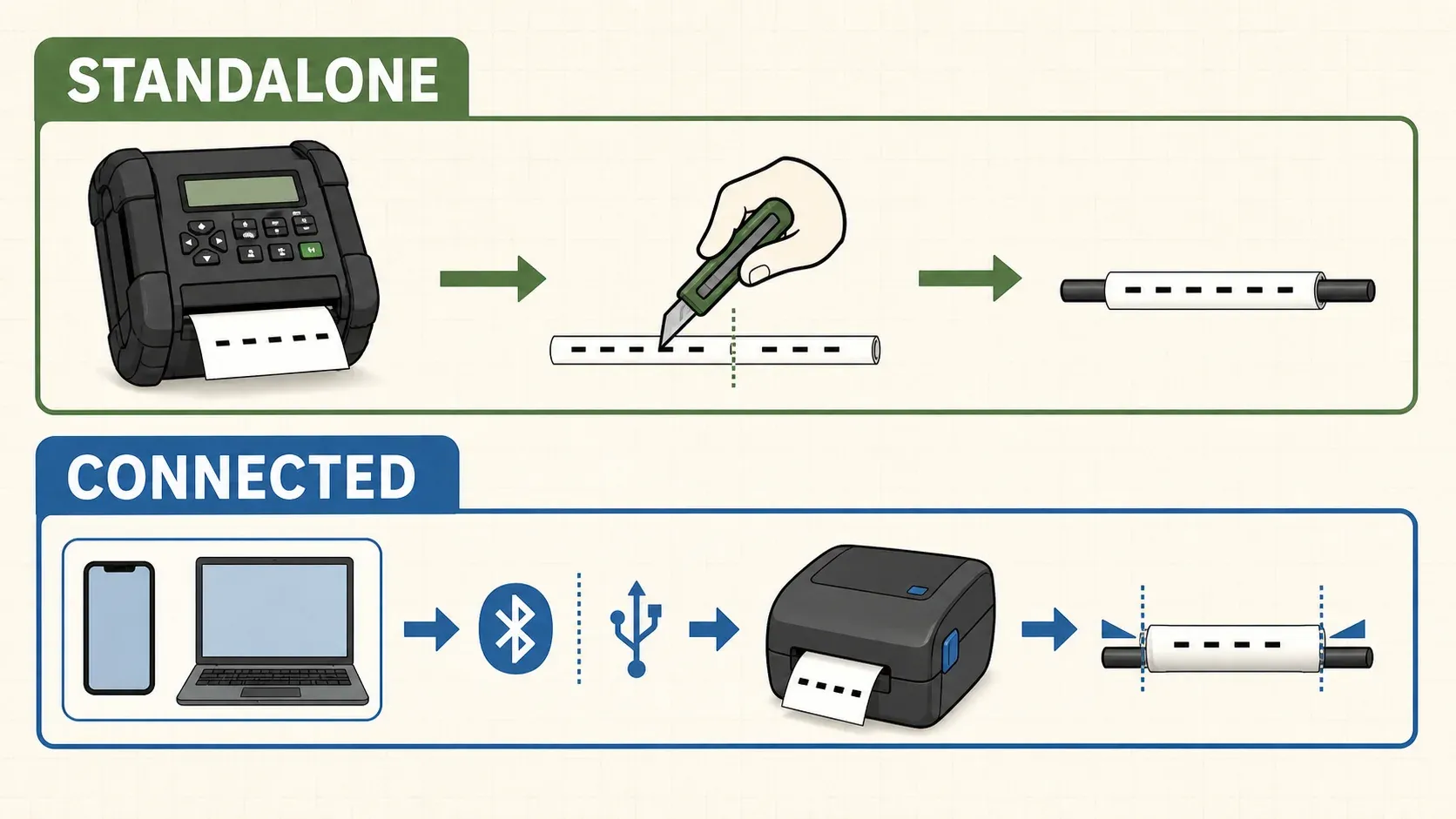

Two workflow diagrams comparing a standalone keypad label printer with a connected printer driven by a phone or computer — The M210 creates and cuts labels at the printer. The LW-PX400 receives label designs from a phone or computer and cuts them automatically.

Field usability and device dependency

Standalone operation is worth more than it sounds like on paper. On a ladder, in a crawl space, or beside a panel, the M210 keeps label entry and printing in one tool. Brady describes it as a drop-in cartridge, type, and print device with built-in electrical and datacom symbols.^[1]

Host dependency introduces failure modes that have nothing to do with print quality. A managed corporate phone may block pairing or app installation. Some secure sites restrict cameras, phones, or wireless transmitters entirely. A phone at four percent battery is not a label printer. None of this makes the PX400 a worse machine; it makes it a machine with a prerequisite, and that prerequisite belongs in the buying decision rather than in a surprise on day one.

Working in the other direction, a full screen is genuinely easier for anything longer than a few characters. Typing forty patch-panel identifiers on an ABC keypad is slow, and current practitioner discussion of the M210 tends to praise its simplicity while criticizing exactly this kind of repetitive entry.^[15] That is anecdotal workflow evidence rather than a measured result, but it lines up with the hardware.

Media and maximum width

Media decides more outcomes than the printer does. Our cable and wire labeling guide covers the material selection logic in full; this section only covers where the two ecosystems differ.

Confirmed media paths for common wire and cable marking jobs
What you are marking	Brady M21 path	Epson LabelWorks PX path
Unterminated conductors before landing	B-342 PermaSleeve heat shrink, sized by wire range	Shrink tube series 203 through 214, sized by nominal diameter and wire range
Finished patch cords and installed cables	B-427 self-laminating wraps	224VSLPX self-lamination overwrap
Panels, breakers, and equipment faces	M21 vinyl, polyester, and nylon cloth up to 19.05 mm	PX vinyl and standard supplies up to 24 mm
Wide equipment or asset labels	Limited by the 19.05 mm ceiling	24 mm gives more label real estate
Third-party or refill cartridges	Brady Authentic M21 cartridges required	Epson LabelWorks PX supplies

The width difference is real but narrow. Epson accepts supplies from 4 mm to 24 mm.^[8] Brady’s M21 ceiling is 19.05 mm.^[2] The extra 5 mm matters when you need a two-line equipment label that stays legible from a few feet away, a larger flag, or a panel label with a barcode alongside text. It matters very little for a wire marker on a 14 AWG conductor.

One constraint is worth knowing before you commit: the M210 works only with Brady Authentic M21 cartridges.^[5] That means there is no supported third-party cartridge market to broaden sourcing or put pressure on consumable prices.

Heat-shrink workflow

Both printers print heat shrink, and that is where the similarity ends.

Brady’s route is the M21 B-342 PermaSleeve family, a 3:1 polyolefin sleeve sold in sizes tied to specific wire ranges.^[6] Epson lists six compatible shrink tube series for the LW-PX400: 203, 205, 208, 210, 211, and 214, published as nominal sizes from 3 mm through 14 mm.^[8] A representative supply, the 211 series, is sold as a 1/2 inch tube for roughly AWG 2 through 8 in a 98 inch length.^[12]

Two practical consequences follow.

First, a higher shrink ratio is not a durability ranking. A 3:1 sleeve recovers to a smaller finished diameter from the same supplied size, which can cover a wider range of conductors per part number and sit tighter on small wire. It does not make the material tougher. Recovery ratio and material performance are separate properties.

Second, tape width is not tube size. A 24 mm ceiling tells you nothing about the largest cable you can sleeve. Order heat shrink by the published supplied diameter or wire range for the exact part number, then confirm the tube slides over the conductor before termination. Our heat-shrink label-maker guide goes through the sizing and pre-termination sequence in detail.

Self-laminating workflow

This is the cleanest head-to-head in the comparison, because both ecosystems have a documented self-laminating path.

Brady offers M21 B-427 self-laminating wraps, which print an opaque legend area and wrap a clear tail over the printed text to protect it.^[7] Epson lists the 224VSLPX self-lamination overwrap, a 24 mm supply, as compatible with the LW-PX400.^[11]

Self-laminating wraps are usually the practical answer for cables that are already terminated, which includes much service work and existing racks. The wrap goes on a finished patch cord; heat shrink usually cannot. Choose the wrap size by cable outside diameter and by how much printed text needs to stay readable after the clear tail is wound on. Manufacturer claims about chemical, abrasion, or temperature resistance apply to the specific wrap you buy, not to every wrap either brand sells. Our heat-shrink versus self-laminating guide covers that format decision in detail, while the network cable label-maker comparison focuses on rack and patch-panel work.

Batch and data workflow

This is the LW-PX400’s strongest argument, and it is a substantial one. Epson lists data import, repeat printing, auto increment, and serialization up to four alphanumeric characters, with QR codes and nine barcode types available through the apps.^[8] A patch-panel schedule, an asset list, or a cable pull sheet can go from a spreadsheet to printed labels without retyping.

The M210 can serialize from the keypad, and it stores up to 12 label files, but it has no connection to a computer.^[2] For a short run that is a minor limitation. On a large port schedule, repeated hand entry takes substantially longer and creates more opportunities for transposed digits.

If your labels come from a list that already exists somewhere else, the PX400’s import path is likely to matter more than the smaller specification differences. If your labels are decided at the moment you print them, that feature provides much less value.

Cutter behavior

Brady lists a manual cutter on the M210.^[2] Epson lists an automatic full cutter on the LW-PX400.^[8]

The consequence is handling, not quality. Printing thirty labels one at a time on the M210 means thirty deliberate cuts and thirty loose pieces. The PX400 cuts each label automatically as it prints, which is genuinely faster when you are sending a batch from a phone.

The limitation both share is more important than the difference between them. Neither documents automatic half cutting, the behavior that leaves labels separated but still attached to one backing strip. If your work depends on printing a long sequential run, carrying it to the rack intact, and peeling markers off in order, this comparison does not contain your printer. That is a legitimate reason to look at a model that documents half cutting instead, and our label-maker guide for electricians covers the printers that do.

Power and field readiness

The M210 can run on the optional rechargeable Li-ion battery, on six AA alkaline cells, or on the AC adapter, and Brady rates the Li-ion pack at roughly 2,000 two-inch labels per charge.^[3] Which of those you get depends on whether you buy the printer alone or the kit. The M210-KIT includes the printer, a starter nylon cloth cartridge, the Li-ion battery, the AC adapter and charger, a replacement power cord, and a hard case.^[4]

The LW-PX400 ships with the AC adapter, a USB cable, a starter 1/2 inch black-on-white cartridge, the Drop-Guard cover, and the software download. It can run portably on six AA batteries, which Epson does not include.^[8]

That is an asymmetry worth planning around. The Epson is more complete on a bench and less complete in a bag; disposable AA cells are a small recurring cost and a small recurring errand. The Brady is the reverse: the bare printer is the least field-ready configuration Brady sells, and the kit is the one that matches the toolbox promise.

Ruggedness and warranty

These two products trade opposite advantages, and neither is a substitute for the other.

Brady publishes explicit durability testing for the M210: a 6-foot drop, 250 pounds of crush force, and military-grade shock per MIL-STD-810G, with an overmolded body and rubber impact bumpers.^[3] Brady’s standard warranty on the printer is two years.

Epson includes a Drop-Guard cover with the LW-PX400 and markets a lifetime warranty program for its LabelWorks printers.^[8] The Drop-Guard cover signals field intent, but the current Epson documentation does not publish a comparable drop or crush test figure, so it should not be read as a rated equivalent. The lifetime warranty is a program with published terms and a registration process, not an unconditional replacement promise, and the terms are worth reading before they influence the purchase.^[13]

Put simply, Brady supplies documented impact and crush figures, while Epson supplies a registered-owner replacement program available in the United States and Canada.^[13] Which matters more depends on the purchasing requirements and support expectations for your work.

TechRadar’s comparative label-printer coverage reached a similar split, selecting the M210 for rugged use and the LW-PX400 for portability.^[14] Direct field-review coverage of the PX400 remains thinner than it is for the M210, so the manufacturer documentation is doing most of the work in this section.

Complete-system cost

Comparable configurations rather than headline printer prices
Configuration	Brady M210	Epson LW-PX400	What changes
Bench setup	Printer only, plus AA batteries or a separately purchased adapter	Ready as shipped with the AC adapter and starter cartridge	Epson is closer to working out of the box on a desk
Field-ready portable	M210-KIT adds the Li-ion battery, charger, and hard case	Add six AA batteries and a case of your choice	The gap narrows sharply once both are carryable
Rechargeable running cost	Li-ion pack recharges between jobs	Disposable AA cells unless you supply rechargeables	A recurring cost the spec sheet does not show
First heat-shrink cartridge	One M21 B-342 size for your wire range	One shrink tube series for your wire range	Both are per-size purchases, not universal
First self-laminating cartridge	One M21 B-427 wrap size	224VSLPX or another listed wrap	Buy for cable diameter, not printer brand
Host device	None required	A supported phone, tablet, or computer	Free if you already carry one, blocking if policy forbids it

The mistake this table is meant to prevent is comparing a bare M210 with a PX400 package and concluding that Brady is simply cheaper. Once you add the battery, charger, and case that make the M210 a field tool, the two systems land in the same neighborhood. At that point the decision is workflow, media, and warranty, which is where it belonged from the start. If you are still setting a budget rather than choosing between these two, our roundup of industrial label makers under $200 shows what else competes at this level.

Who should buy the Brady M210?

#1BEST STANDALONE FIELD TOOL

Brady M210 Portable Label Printer Kit

A rugged, self-contained handheld for technicians who want the printer to be the entire tool, with no phone, app, or pairing in the workflow.

What we like

Built-in keypad and display, so no host device is required
Documented 6 ft drop, 250 lb crush, and MIL-STD-810G shock testing
Kit includes the rechargeable battery, charger, and hard case

Watch out for

19.05 mm maximum media width
Manual cutter and no data import
Requires Brady Authentic M21 cartridges

Check latest price

If you click this link and buy, we may earn a commission at no additional cost to you.

Buy the M210 when the work is service, troubleshooting, and identification created on the spot. Panel and breaker labels, wire markers on unterminated conductors, a handful of patch-panel ports, equipment tags added while you are diagnosing something. It also wins outright in facilities where phones are restricted, where wireless transmitters are controlled, or where the printer is shared across technicians who should not have to set anything up.

Buy the kit rather than the bare printer unless you already own Brady power accessories. The bare body is the configuration most likely to disappoint.

Who should buy the Epson LW-PX400?

#2BEST CONNECTED WORKFLOW

Epson LabelWorks LW-PX400

A compact 24 mm industrial printer for planned, list-driven labeling, with Bluetooth and USB, data import, and an automatic full cutter.

What we like

24 mm media plus documented heat-shrink and self-laminating supplies
Data import, repeat printing, and auto increment from phone or PC
AC adapter, USB cable, Drop-Guard cover, and starter cartridge included

Watch out for

No display or keyboard, so a host device is mandatory
Automatic full cut only, with no half-cut option
Portable use runs on six AA batteries that are not included

Check latest price

If you click this link and buy, we may earn a commission at no additional cost to you.

Buy the PX400 when labels come from a list. Structured cabling installs, asset rollouts, repeatable templates across sites, patch-panel schedules exported from a test tool or spreadsheet. The 24 mm ceiling helps for equipment and panel labels, the automatic cutter removes a step from every label in a batch, and the lifetime warranty program is a reasonable tiebreaker if you have read the terms.

Buy it only if you are comfortable that a phone or laptop is part of the tool. That is not a compromise if your workflow already runs on one. It is a real limitation if it does not.

Who should buy neither?

Skip both if you need a single printer that works standalone and also accepts imported data, because neither does both. The Brother PT-E560 is one hybrid alternative, compared directly with the M210 in our Brady M210 versus Brother PT-E560 guide. Skip both if you need automatic half cutting for long strips of sequential markers. Skip both if you need media wider than 24 mm, dense small text at higher resolution, or output volumes well beyond the roughly 100 labels per day that Brady describes for the M210.^[2] In those cases you are shopping in a different category, and forcing the job through a field handheld costs more in time than the printer saves in price.

Decision diagram showing when to choose the Brady M210, the Epson LW-PX400, or neither printer — Choose the M210 for standalone field entry, the LW-PX400 for a connected workflow, and neither when half cutting, wider media, hybrid operation, or higher volume is required.

The recommendation

Choose the Brady M210 when the printer must work with nothing else in your hands, when device policy or site restrictions rule out a phone, when documented impact resistance matters, when M21 media covers your materials, and when labels are created one at a time in the field. Buy the kit.

Choose the Epson LW-PX400 when a phone or computer is already part of how you work, when labels come from an existing list, when 24 mm media or automatic cutting saves real handling time, and when you want a connected industrial platform without moving up to a higher-priced hybrid handheld.

Choose neither when you need standalone keypad entry and connected batch printing in the same body, when automatic half cutting is essential, when media must exceed 24 mm, or when daily volume pushes past what a field handheld is built for.

The useful question is not which printer has more features. It is whether a phone or computer in your workflow is an advantage or a liability.

FAQ (Frequently Asked Questions)

Is the Brady M210 or the Epson LW-PX400 better?

Neither is better in general. The M210 is the better buy when the printer itself has to be the complete tool, because it has a built-in keyboard and display and needs no phone or computer. The LW-PX400 is the better buy when a phone or PC is already part of the workflow and you want 24 mm media, imported label data, and an automatic cutter.

Can the Epson LW-PX400 print without a phone or computer?

No. Epson lists no LCD and no internal memory for the LW-PX400, and label creation happens in Epson Label Editor on Windows or Mac, or in a compatible mobile app. The printer is the output device, not the design interface.

Does either printer do automatic half cutting?

No. Brady lists a manual cutter for the M210 and Epson lists an automatic full cutter for the LW-PX400. If you need long strips of sequential labels that stay on one backing, look at a printer that documents automatic half cutting instead.

Which one handles heat shrink better?

It depends on the cable diameters you actually mark. Brady prints M21 B-342 PermaSleeve tubing, and Epson lists six compatible shrink tube series for the LW-PX400. Compare the published diameter or wire range for the exact part number rather than the printer name.

Do both support self-laminating wire wraps?

Yes. Brady offers M21 B-427 self-laminating wraps for the M210, and Epson lists the 224VSLPX self-lamination overwrap as compatible with the LW-PX400. The formats and widths differ, so match the wrap to the cable diameter and the text you need to read.

Is the M210 really cheaper?

The printer-only price is lower, but the comparison is not equal. The LW-PX400 package includes an AC adapter, USB cable, Drop-Guard cover, and a starter cartridge, while a field-ready M210 usually means the kit with the rechargeable battery, charger, and hard case. Compare the configuration you would actually carry.

What does Epson lifetime warranty actually mean?

Epson markets a lifetime warranty program for its LabelWorks printers, with terms and registration published on its warranty page. Treat it as a program with conditions rather than an unconditional promise, and read the current terms before you let it decide the purchase.

Will either printer make my installation code compliant?

No. A printer produces an identifier. Compliance depends on the identifier scheme, material suitability, placement, legibility, documentation, and the requirements that apply to the specific project.
