Heat-Shrink vs Self-Laminating Cable Labels

Choose the method by asking when the label goes on, not which format sounds tougher. If the conductor or cable is still open at one end, printable heat shrink is usually the stronger first candidate, provided the exact tubing is documented for the cable diameter and the environment. If the cable is already terminated and cannot be disconnected, a correctly sized self-laminating wrap is normally where you start.

Neither format wins in general. A heat-shrink sleeve is mechanically captured around the cable and does not depend on adhesive, but it is hard to change and it must be sized twice, once for what it slides over and once for what it grips. A self-laminating wrap seals its printed legend under a clear tail and can be applied to a finished cable, but it depends on adhesive, surface, and a published diameter window that is often narrower than people expect.

One belief causes more wasted media than any other: that a 3:1 shrink ratio means a sleeve can pass over a connector. The ratio is geometry. It says how far the tube can close, not whether the supplied opening clears an RJ45 plug and boot, and not whether the cable behind that plug is still inside the manufacturer range afterward. Both facts have to be checked on the exact part number before heat shrink goes anywhere near a terminated cable.

The quick decision table

Choosing between printable heat shrink and self-laminating wraps
Your situation	Printable heat shrink	Self-laminating wrap	What actually decides it
Cable or conductor not yet terminated	Strong candidate, and usually the tidiest result	Also viable, and easier to change later	Environment, permanence, and how often the identifier will be revised
Cable already terminated and cannot be disconnected	Excluded by default, allowed only after a measured clearance check	Normal starting point	Whether the sleeve can pass the connector and still grip the jacket
Sleeve would have to pass over a plug, boot, lug, or ferrule	Only with a published expanded inside diameter that clears the obstruction	Not applicable, since the label wraps the jacket	The largest obstruction measured against the supplied tube dimension
Identifiers will be revised, re-patched, or reissued	Disruptive to change once recovered	Usually replaceable with less disturbance	Rework cost over the service life, not the first installation
Low-profile finish matters in a dense bundle	Typically the flattest result, with no adhesive overlap	Adds a wrapped overlap and a small step at the tail	Available clearance and how the bundle is dressed
Printed legend needs physical protection	Print sits on the tube surface and relies on the material	Clear tail seals the legend under transparent film	Which protection mechanism suits the handling and cleaning regime
Harsh exposure such as fluids, heat, UV, or solvents	Can be excellent with a documented tubing family	Can be excellent with a documented self-laminating product	The exact part number data sheet, never the format name
Large cable, trunk, or bundle	Limited by the largest tube size in the range	Limited by printable height and clear-tail length	Whether a tie-on tag or flag is the better answer
Legend must be read without rotating the cable	Text follows the sleeve and turns with the cable	Text follows the jacket and turns with the cable	Whether a flag is the more readable format
Printer already owned	Requires a compatible heat-shrink cartridge or supply	Requires a compatible self-laminating supply	Exact printer model plus exact media part number

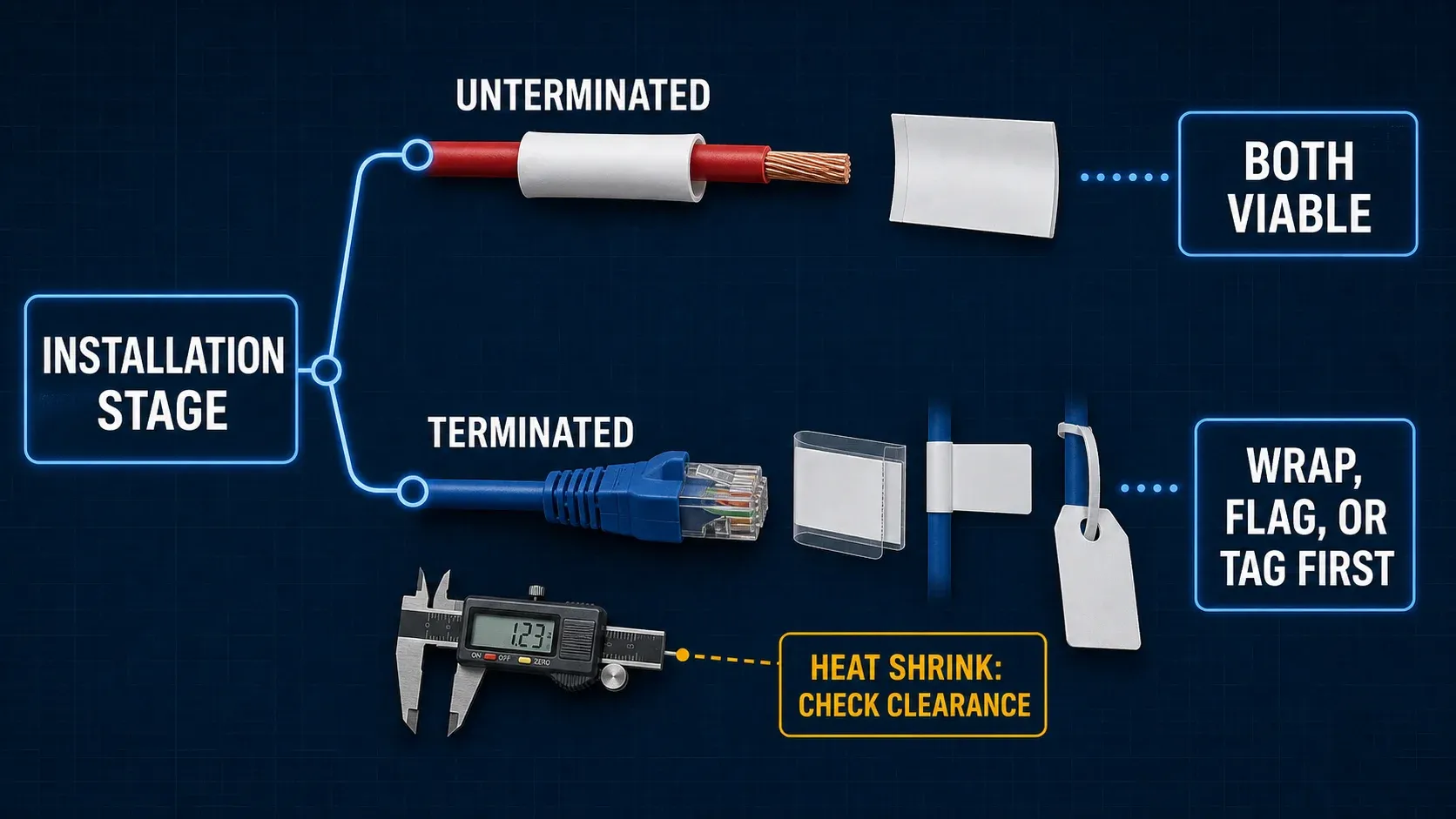

Decision diagram branching from an unterminated cable to either label format and from a terminated cable to a wrap, flag, or tag — Start with installation stage. A fitted connector changes the decision before durability or appearance enters the comparison.

The biggest difference is when the label is installed

Everything else follows from this. A heat-shrink sleeve is a tube. It has to arrive at its final position by travelling along the cable from an open end, which normally means before the connector, lug, ferrule, or terminal is fitted. A self-laminating wrap is an adhesive label. It arrives from the side, so a finished cable is no obstacle at all.

That single mechanical difference explains the workflow patterns you see in the trades. Panel builders, harness shops, and control technicians who work from a prepared wire list favor heat shrink because the wire is open, the identifiers are known in advance, and the finished marker cannot be knocked off. Service technicians, AV installers, and anyone documenting an existing rack favor wraps because disconnecting a live or terminated cable to slide on a tube is not a reasonable price for a label.

The exception is real but narrow. A sleeve with a large enough published opening can pass over a small connector. Brother, for example, markets its 3:1 HSe tubing on exactly that basis.^[5] Treat that as an invitation to measure, not as a general permission. The test is short:

Identify the exact tubing part number.
Read its supplied or expanded inside diameter.
Measure the largest obstruction the tube must cross, including the connector body, strain relief, and boot.
Confirm the tube clears that obstruction without being forced.
Confirm the cable outside diameter sits inside the published compatible range.
Confirm the material is documented for the exposure.

If you cannot answer all six, the cable is already terminated as far as this decision is concerned.

How printable heat shrink works

A printable heat-shrink marker is a thermoplastic tube, commonly a cross-linked polyolefin in general-purpose products, that is printed flat, cut, positioned, and then reduced with controlled heat until it grips the cable. Most printable identification sleeves rely on mechanical retention rather than adhesive, although heat-shrink products with adhesive or meltable liners also exist. Check the construction of the exact sleeve rather than assuming it is unlined.

The part that trips up buyers is that a single tube has three dimensions, not one, and they answer three different questions.

Supplied or expanded inside diameter. What the sleeve can be slid over.
Recovered inside diameter. How far the tube can close when fully heated.
Compatible cable diameter range. Which cables the manufacturer expects it to fit.

TE Connectivity publishes all three for its fluid-resistant D-SCE sleeves. One current part is listed with an expanded inside diameter of 19.1 mm, a fully recovered inside diameter of 6.4 mm, and a compatible cable range of 6.9 mm to 16.2 mm.^[9] Read those numbers together and the logic becomes obvious. The cable has to be larger than the fully recovered bore, otherwise the tube reaches its recovery limit before it touches the jacket and the marker can rotate or slide.

2:1 and 3:1 describe geometry, not toughness

A higher ratio widens the geometric envelope, which usually means the same printed marker covers more sizes and starts from a larger opening. It does not mean a wider range in every direction, and it says nothing at all about temperature, chemicals, or UV.

Compare two Brother parts. The 3:1 HSE251EG is a 21.0 mm supplied tube recommended for cables of 4.2 mm to 13.5 mm.^[6] The older 2:1 HSe-251 is a 23.6 mm supplied tube recommended for 7.3 mm to 14.3 mm.^[7] The 3:1 part reaches much smaller cables, which is genuinely useful in mixed work. Its published maximum is nonetheless slightly lower than the 2:1 part it sits beside. Ratios do not rank media.

Sizing examples worth studying

Published dimensions from current manufacturer documentation
Example media	Published geometry	Documented cable range	What it teaches
Brady M21-187-C-342 PermaSleeve, 3:1	Supplied 0.187 in diameter, recovered 0.062 in	0.062 in to 0.15 in (1.6 mm to 3.8 mm)	A sleeve sized for 20 to 10 AWG conductors clears very little else
Brother HSE211EG, 3:1	5.2 mm supplied tube width	0.8 mm to 3.1 mm	Small tubing is a conductor marker, not a patch-cable marker
Brother HSE251EG, 3:1	21.0 mm supplied tube width	4.2 mm to 13.5 mm	The wider ratio buys reach at the small end of the range
Brother HSe-251, 2:1	23.6 mm supplied tube width	7.3 mm to 14.3 mm	A 2:1 part can still have the higher published maximum
TE D-SCE-1K-18-50-9, 3:1	Expanded inside diameter 19.1 mm, recovered inside diameter 6.4 mm	6.9 mm to 16.2 mm	The cable must be larger than the fully recovered bore for the sleeve to grip
HellermannTyton RO512REF self-laminating vinyl	0.75 in wide label with a printable zone and a clear tail	0.26 in to 0.33 in bundle diameter (6.68 mm to 8.38 mm)	Wrap labels have narrow diameter windows too, not universal fit

Note how quickly the ranges shift. Brady lists its M21-187-C-342 PermaSleeve sleeve as supplied at 0.187 in and recovered at 0.062 in, designed for 20 to 10 AWG conductors measuring 0.062 in to 0.15 in.^[1] That is a control-wire marker, not a sleeve intended to pass over a typical installed connector.

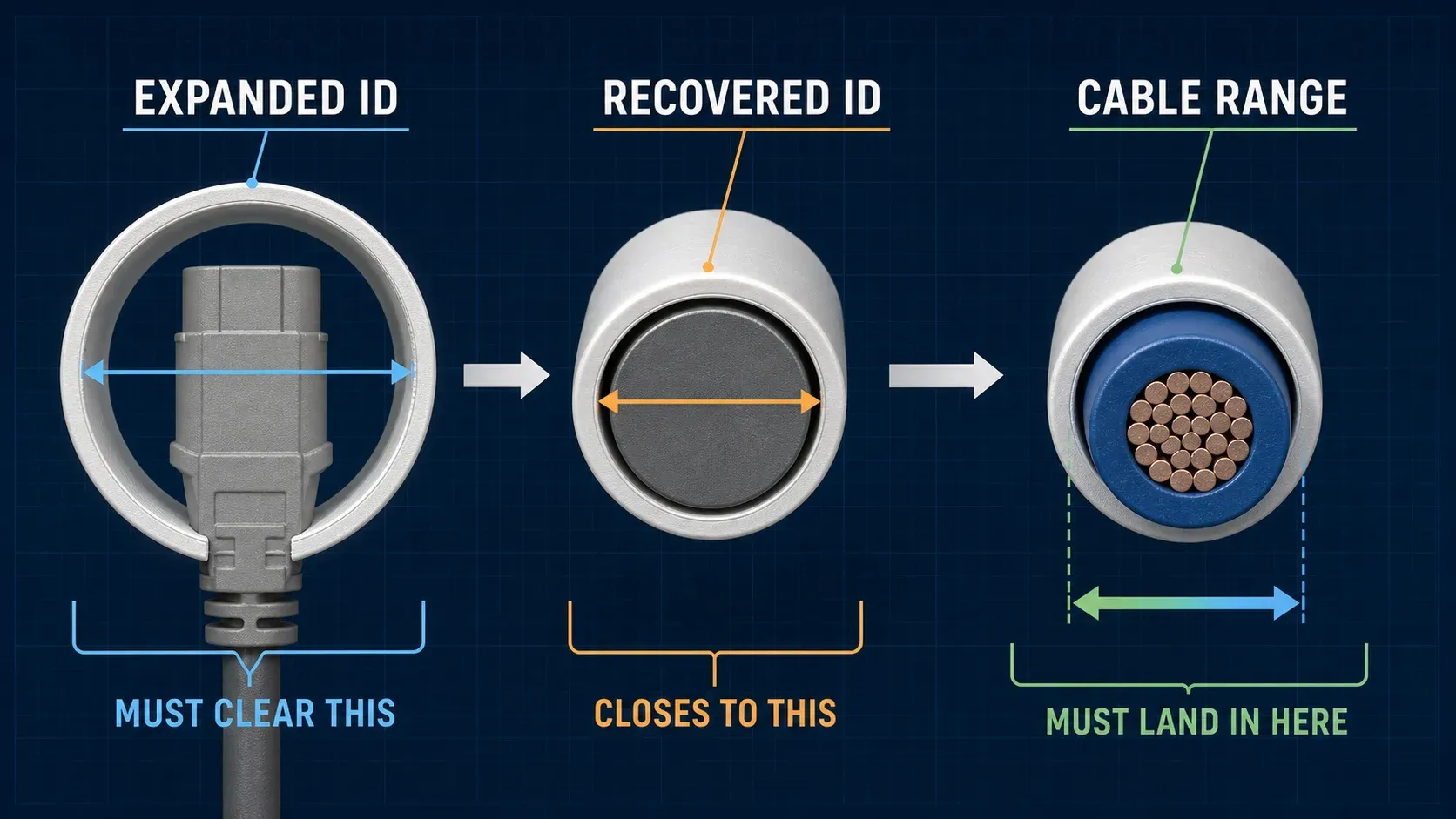

Diagram comparing expanded inside diameter, recovered inside diameter, and the compatible cable range of a heat-shrink sleeve — Three dimensions govern fit: what the open sleeve clears, how far it recovers, and the cable range where it can grip.

How self-laminating wraps work

A self-laminating label is one piece of film with two jobs. An opaque section carries the printed legend. A longer clear tail continues past it, wraps the cable, and finishes on top of the print, sealing the text under transparent film. HellermannTyton describes exactly this construction for its Rite-On vinyl markers, where the clear tail seals the legend under clear vinyl to preserve label quality.^[10] Brady, 3M, and Epson build the same idea in their own materials and adhesives.^[2]^[11]

Two measurements decide whether a given wrap works:

Printable zone. Enough opaque area for the full identifier at a readable size, including any second line or barcode.
Clear tail length. Enough transparent film to circle the cable and land back on top of the printed area with the overlap the manufacturer designed for.

Manufacturers publish diameter ranges for this reason, and they are often tighter than the format’s reputation suggests. The HellermannTyton refill above is documented for bundle diameters of 0.26 in to 0.33 in, a working window of roughly seven hundredths of an inch.^[10] Brady maintains a self-laminating size calculator that works from wire size for the same reason.^[3]

You can compute a cable circumference as pi multiplied by the outside diameter, and it is a useful sanity check when you are estimating how much legend will be visible from one viewing angle. It is not a compatibility test. Circumference says nothing about printable height, overlap allowance, adhesive, or approved range.

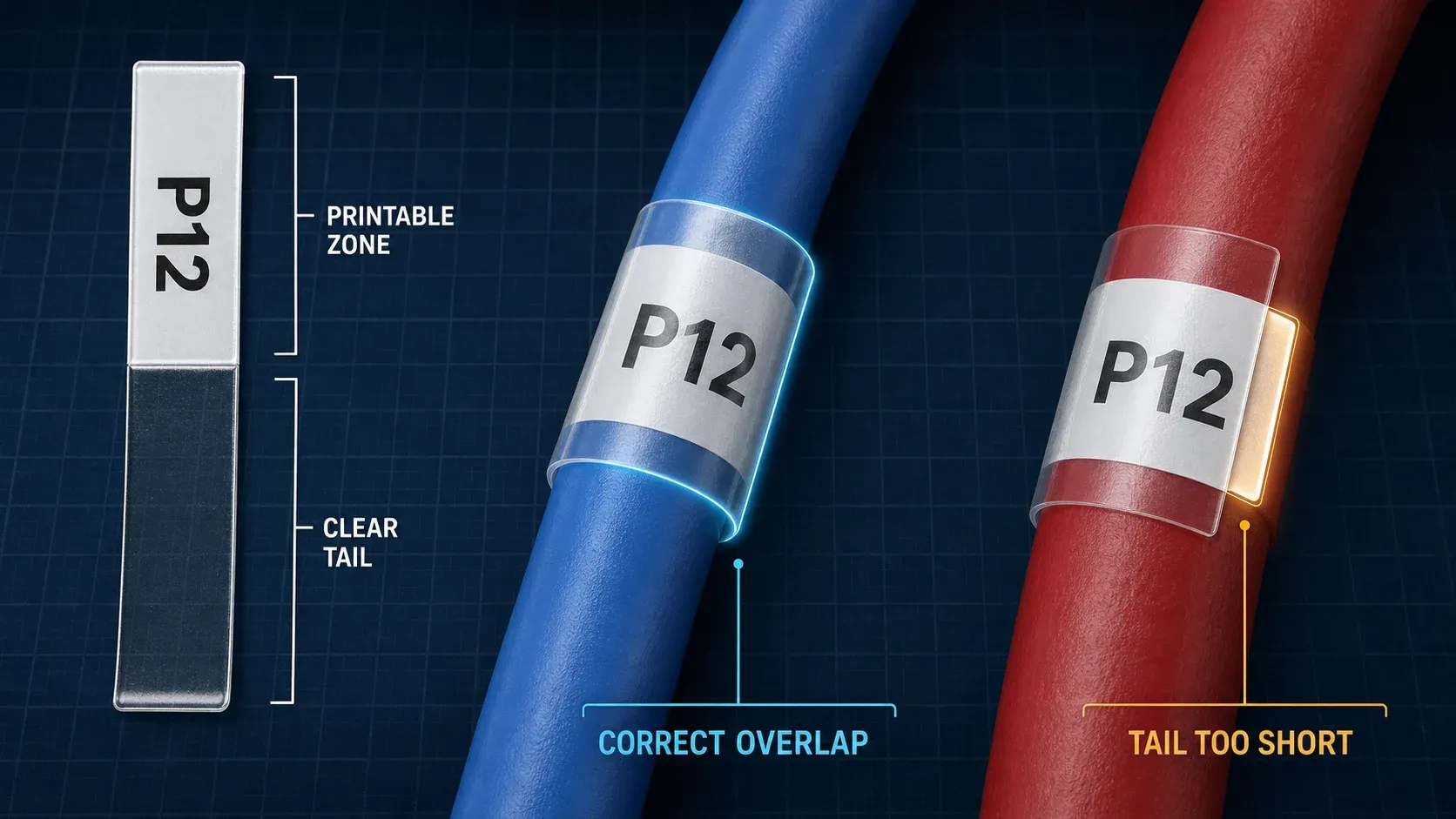

Self-laminating label anatomy showing its printable zone, clear tail, correct overlap, and a tail that is too short — The clear tail is functional: it must circle the cable and overlap the printed legend to protect it.

Durability depends on the exact material, not the format

This is where most format comparisons go wrong. They treat heat shrink as the durable option and wraps as the convenient one. The evidence does not support that split.

On the tubing side, TE Connectivity alone maintains distinct printable families for different service conditions: fluid-resistant sleeves for exposure to oils and organic fluids, low-fire-hazard zero-halogen sleeves for smoke and toxicity requirements, high-temperature fluoropolymer sleeves, and UV-stabilized products for outdoor exposure.^[8] Two sleeves with the same 3:1 ratio can belong to different worlds. Brady documents its PermaSleeve polyolefin as UV, chemical, fuel, and oil resistant, self-extinguishing, and UL Recognized to UL 224, with an operating range of -67 F to 275 F.^[1] That is a specific claim about a specific material, and it is the kind of statement worth having in writing.

On the wrap side, the same discipline applies in both directions. The HellermannTyton Rite-On refill is UL Recognized and documented from -40 F to 176 F with an acrylic adhesive, and its data separately lists UV resistance as no.^[10] A different self-laminating product from a different manufacturer may document outdoor service. Epson describes its 24 mm vinyl self-lamination overwrap as a flexible tape with an opaque printable area and a clear protective wrap intended for demanding wire-marking work.^[12] None of that transfers between products.

The practical rule is short. Name the exposure first, then find a data sheet that addresses it by name. Fields worth checking every time include service and application temperature, UV or sunlight exposure, moisture, oils and fuels, cleaning solvents, abrasion, flame or low-smoke requirements, adhesive compatibility with the jacket material, and any indoor or outdoor designation.

What to use on a cable that is already connected

Start with a self-laminating wrap sized for the measured jacket diameter. Clean the surface as the label manufacturer instructs, wrap so the clear tail finishes over the legend, and check that the print is fully covered rather than nearly covered.

Reach for a flag when the cable is too small for a readable wrapped legend, when the identifier needs two or three lines, or when the label has to be read from a fixed direction in a dense bundle. Reach for a tie-on tag when the cable or bundle is outside the wrap range, when adhesive contact is undesirable, or when the identifier should stand clear of the cable surface.

Heat shrink returns to the table only in two cases: the cable is being reterminated anyway, or you have measured the connector and confirmed both the clearance and the recovered fit on a specific part number. Our cable and wire labeling guide covers the other formats in more depth if the job spans panels and equipment as well as cables.

What to use before termination

With an open end, both formats are on the table, so the decision moves to permanence, environment, and rework.

Choose heat shrink when the identifier should stay with the conductor for the life of the installation, when adhesive is unwelcome because of heat or contamination, when a flush profile matters in a tight loom, or when the documented material properties of a specific tubing family match a named exposure. Panel and control work fits this description often.

Choose a wrap even on an unterminated cable when the identifiers are likely to change, when several people will maintain the records, or when the printed legend needs more room than the cable circumference gives a sleeve. A lab, a test bench, or an office rack that gets re-patched every quarter is not well served by markers that require cutting to revise.

Rework cost is the variable most buyers leave out. It is worth pricing explicitly, because a marker that is slightly harder to install and much harder to change can be the wrong economic answer even when it is the more robust product.

When neither format is the right answer

Flags when the text must be readable without rotating the cable, or when a wrap would leave too little visible legend on a thin cable.
Tie-on tags when the bundle exceeds the wrap range or the tubing range, when adhesive is unsuitable, or when the identifier must stay visibly separate from the cable.
Flexible wrap tape when a conformable adhesive wrap is enough and the clear overlaminate construction adds nothing the job needs.
Panel, port, or equipment labels when the real identification target is the patch panel, terminal block, breaker, or enclosure. Labeling the cable is sometimes solving the wrong problem.

Recognizing these cases early is usually cheaper than buying a second cartridge for a format that was never going to fit.

Standards inform the choice, they do not settle it

Keep this part in proportion. Product documentation and standards are inputs to a selection decision; they are not a compliance verdict.

UL describes ANSI/UL 224 as the standard for extruded insulating tubing, covering electrical, mechanical, thermal, and flammability requirements.^[14] A sleeve recognized to that standard has been evaluated as a component. It has not certified your installation.

OSHA’s general electrical equipment requirements address markings that are durable for the environment involved and identifications that are legible and describe purpose.^[15] Those obligations point toward documented materials and readable legends. They do not name a label format.

On the structured-cabling side, ANSI/TIA-606-D remains the current published administration standard, and TIA has issued ballot and public review notifications for a TIA-606-E revision.^[16]^[17] If a specification calls out an administration standard, read the current revision rather than a summary, and let the specification drive the identifier scheme.

Choose the printer after the method

Once the method and the media part number are settled, printer selection becomes a compatibility question rather than a popularity contest. Epson, for instance, documents the LW-PX400 as working with both heat-shrink tube supplies and self-laminating wrap supplies, and its 24 mm self-lamination overwrap lists the LW-PX400 among compatible printers.^[13]^[12] Brady’s M21 family similarly spans heat-shrink and self-laminating wire wraps across its application catalog.^[4]

Verify compatibility at the level of the exact printer model and the exact supply part number on current manufacturer documentation. Media systems differ between brands and can differ between models within a brand.

If the work is mostly tubing, the heat-shrink label-maker comparison covers the printers that support printable tubing and the sizing checks that go with them. For finished patch cables and rack density, the network cable labeling guide is the closer fit, and mixed trade work is covered in the electrician label-maker comparison.

Common mistakes

Sizing from wire gauge alone. Gauge helps you find the right chart. Jacket construction decides the actual outside diameter, and two conductors of the same gauge can measure very differently.

Assuming 3:1 means connector clearance. It means the tube closes further. Whether it clears a connector depends on the supplied opening and the obstruction, and whether it then grips depends on the cable.

Buying by material name. Polyolefin and vinyl are families, not specifications. Two products with the same material name can differ on temperature, UV, and chemical performance.

Treating self-laminating as an indoor-only format. Some products document broad service ranges, others explicitly do not resist UV. The data sheet is the only way to know.

Choosing a wrap that is too small. If the clear tail does not finish over the printed legend, the label has lost the property you bought it for.

Ordering media before measuring. The printer is easy to return. A shelf of cartridges in the wrong diameter is not.

The bottom line

Choose printable heat shrink when the conductor is open before termination, the exact tubing clears everything it must pass, the cable sits inside the published compatible range, the documented material suits the exposure, and the identifier is meant to stay put for a long time.

Choose a self-laminating wrap when the cable is already terminated, when identifiers will be revised, or when sealing the printed legend under a clear tail is the protection the job actually needs, and the measured jacket diameter falls inside the product’s published range.

Choose something else, a flag, a tie-on tag, flexible wrap tape, or a panel label, when the cable is too large, too small, too crowded, or simply the wrong thing to be labeling.

Then, and only then, compare printers.

FAQ (Frequently Asked Questions)

Can you put heat-shrink labels on cables that are already terminated?

Sometimes, but it is a dimensional question rather than a general rule. The unshrunk sleeve has to clear the largest connector, boot, lug, or ferrule it must pass, and the cable still has to sit inside the manufacturer recommended diameter range after recovery. If either number is unknown, use a self-laminating wrap, a flag, or a tie-on tag instead.

Is 3:1 heat shrink always better than 2:1?

No. The ratio describes geometry, not durability, and it does not always mean a wider working range. Brother lists the 3:1 HSE251EG for cables of 4.2 mm to 13.5 mm, while the 2:1 HSe-251 covers 7.3 mm to 14.3 mm. The 3:1 part reaches smaller cables and starts from a larger opening, but its published maximum is slightly lower. Compare the exact part numbers, not the ratios.

Are self-laminating cable wraps waterproof or UV resistant?

Only if the specific product documents it. HellermannTyton publishes a Rite-On self-laminating vinyl refill rated from -40 F to 176 F and UL Recognized, with UV resistance listed as no. Another self-laminating product from another manufacturer may document outdoor use. The format name tells you nothing; the data sheet does.

How do I size a heat-shrink wire marker?

Work with three numbers rather than one. The supplied or expanded inside diameter tells you what the sleeve can pass over. The fully recovered inside diameter tells you how far it can close. The compatible cable diameter range tells you which cables it will actually grip. Measure the cable outside diameter with calipers, because two conductors of the same gauge can have very different jackets.

What is the clear part of a self-laminating label for?

It is an overwrap. The opaque section carries the printed legend, and the clear tail wraps past it and seals the print under transparent film, which protects the text from handling, dirt, and abrasion. If the clear tail is too short for the cable, the print stays exposed and the label loses its main advantage.

What should I use on Ethernet patch cables that already have RJ45 plugs?

Start with a self-laminating wrap or a flag. A sleeve wide enough to clear a molded plug and boot is usually far too large to recover tightly onto the jacket behind it. Heat shrink becomes reasonable again only if the cable is being reterminated as part of the work.

What should I use if neither format fits?

Look at tie-on tags for bundles and large cables, flags where the identifier must be read from a fixed direction or needs more lines than the cable circumference allows, flexible wrap tape where a clear overlaminate is unnecessary, and flat panel or port labels when the real identification target is the patch panel, terminal block, or enclosure rather than the cable.

Does UL Recognized tubing make an installation compliant?

No. UL describes ANSI/UL 224 as covering extruded insulating tubing through electrical, mechanical, thermal, and flammability testing. That is a component evaluation. Whether a finished identification satisfies a project specification, an employer procedure, a customer requirement, or an authority having jurisdiction is a separate question.
