The Brother PT-E560BTBP is the best heat-shrink label maker for most professional wire-marking work. It supports Brother’s printable HSe tubing, can be used from its own keyboard or a connected device, and has the cable and wire formats needed to turn a roll of identifiers into a repeatable job. The Epson LW-PX700 is the better choice when you want a capable standalone printer without paying for mobile connectivity.
The printer is only half the purchase. The tube must be large enough to slide into place, small enough to recover around the cable, and documented for the environment. Heat shrink is typically installed before termination. If the cable is already finished, a self-laminating wrap is normally the more useful tool.
The quick comparison
Five checks that prevent the wrong tubing order
1. Brother PT-E560BTBP: best overall
Brother P-touch EDGE PT-E560BTBP
The most flexible tubing workflow here, combining Brother HSe support with standalone, mobile, and database-driven label creation.
- Supports Brother HSe printable heat-shrink media
- Standalone, Bluetooth, and USB-C workflows
- Database and serialization tools for prepared wire lists
- HSe tubing sizes must be checked against cable outside diameter
- More capability than occasional users need
If you click this link and buy, we may earn a commission at no additional cost to you.
The PT-E560BTBP is the easiest recommendation when a wire list already exists before termination. Brother documents HSe heat-shrink media plus serialization and stored databases, so identifiers can be prepared from project data rather than typed beside the panel.[1]
Brother’s HSe-241 example is 17.7 mm tubing with a stated 2:1 shrink ratio and a recommended cable outside-diameter range of 5.4 to 10.6 mm.[2] That is the kind of detail to check before buying. “Prints heat shrink” is not a substitute for matching the tube to the cable.
The half cutter is valuable for batches printed on compatible adhesive label media because it leaves labels attached to a backing strip. It should not be treated as a reason to cut every specialty material automatically. Follow the supply instructions for heat-shrink tubing and use the keyboard for a quick repair or a connected device for a larger prepared set.
2. Epson LW-PX700: best standalone value
Epson LabelWorks LW-PX700
A keyboard-driven tubing printer for technicians who want Epson's 3 to 14 mm shrink supplies and serialization without a phone.
- Standalone QWERTY keyboard
- Epson documents heat-shrink supplies from 3 to 14 mm
- Serialization and Windows transfer
- Epson advises scissors for cutting heat-shrink tubing
- No phone, tablet, or Mac workflow
- The exact tube supply still has to be selected by diameter
If you click this link and buy, we may earn a commission at no additional cost to you.
The LW-PX700 is a good fit when the printer needs to work independently in a panel room or service van. Epson lists heat-shrink supplies from 3 to 14 mm, along with wire, cable-wrap, flag, patch-panel, and terminal-block formats.[3] It supports serialization and automatic full and half cutting for compatible label media. Epson recommends cutting heat-shrink tubing with scissors to prolong the built-in cutter’s life.
Its limitation is connectivity. The PX700 works from its own keyboard or Epson Label Editor on Windows. That is reassuring when a phone is not part of the work, but less convenient when labels are generated from a Mac, tablet, or mobile inventory system.
3. Epson LW-PX400: best phone-first option
Epson LabelWorks LW-PX400
A compact option for preparing Epson heat-shrink identifiers from a phone or computer before the wire reaches the termination bench.
- Bluetooth mobile and computer connectivity
- Epson heat-shrink supplies from 3 to 14 mm
- Data import and serialization
- No keyboard or display
- Epson advises scissors for cutting heat-shrink tubing
- Every label depends on a connected device
If you click this link and buy, we may earn a commission at no additional cost to you.
The PX400 moves the interface to the larger screen you already carry. Epson documents Bluetooth and USB connectivity, data import, serialization, cable-wrap and flag layouts, and heat-shrink supplies from 3 to 14 mm.[5]
That makes it attractive for technicians who prepare identifiers from a phone or computer and want a small printer in the case. The trade-off is clear: there is no onboard fallback. If you need to print a replacement marker with no phone, choose the PX700, Brother, or Brady instead.
4. Brady M210 Kit: best rugged field tool
Brady M210 Portable Label Printer Kit
A self-contained Brady system for heat shrink and other durable wire media when ruggedness matters more than connectivity.
- Brady rates it for six-foot drop resistance
- M21 family includes heat shrink and self-laminating media
- Works without an app or computer
- ABC keyboard and manual cutter
- No half cut or connected workflow
- Maximum media width is 19.05 mm
If you click this link and buy, we may earn a commission at no additional cost to you.
The M210 is the simplest system here. Brady lists M21 heat-shrink supplies and rates the printer for resistance to six-foot drops.[6] It fits short, self-contained jobs where the required tubing is already known and every identifier will be typed at the bench. It is less attractive for a long prepared wire list because there is no connected data workflow. Our M210 versus PT-E560 comparison examines that workflow trade-off directly.
The cost of that simplicity is speed and flexibility. The keyboard is ABC rather than QWERTY, the cutter is manual, and there is no phone or computer connection. It is best when those limitations are acceptable and Brady’s media ecosystem is already familiar to your team.
How printable heat shrink actually fits into the job

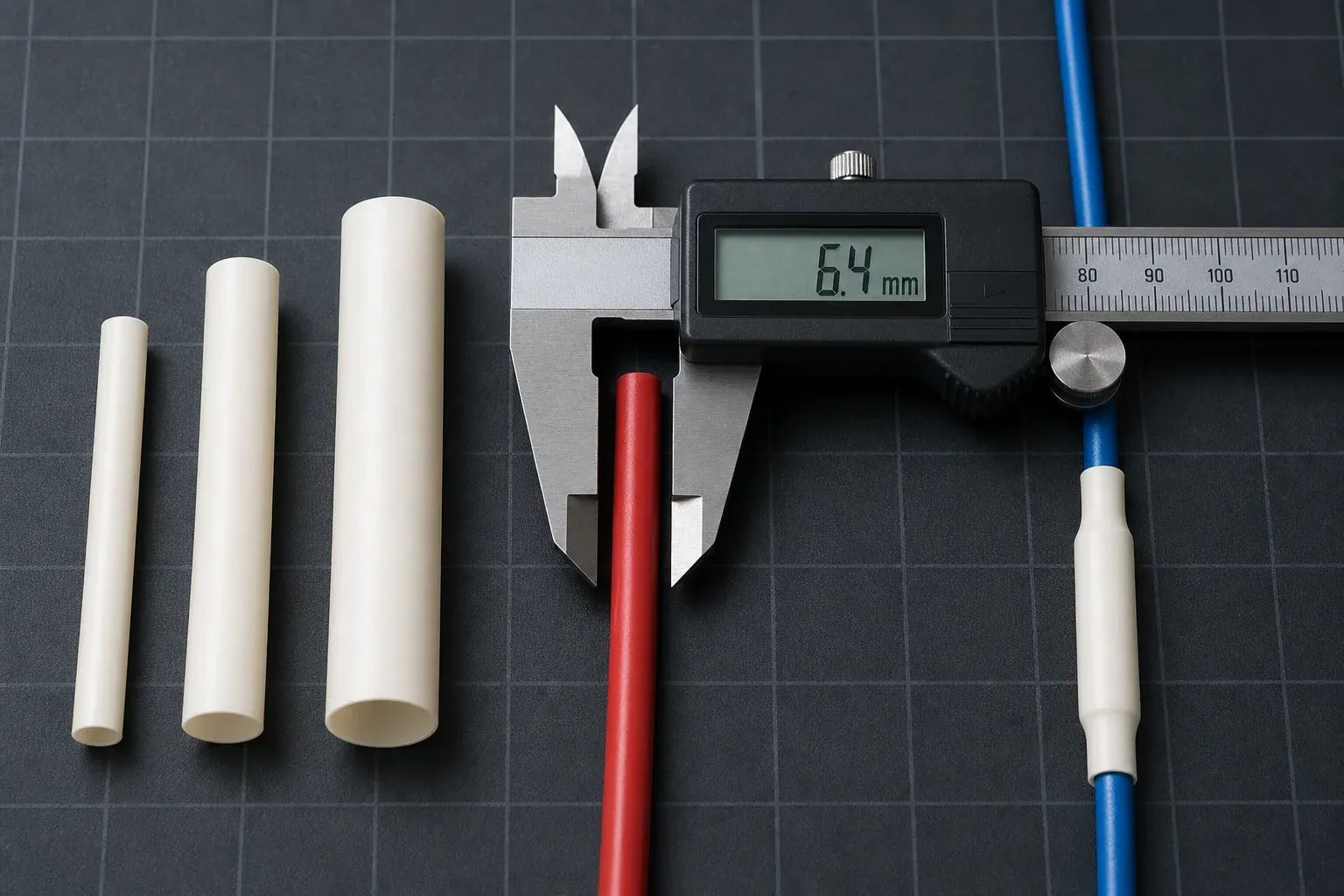

Measure the cable, not the tape width
Printer media width describes the printable surface or cartridge family. It does not tell you whether the tube will slide over the cable or shrink tightly around it. Use the tubing manufacturer’s stated cable range and shrink ratio. If a connector is already installed, the tube may not fit over it at all.
Install it before termination
The practical sequence is planned before the connector or lug blocks the tube: print the identifier, slide the tube into place, complete the approved termination process, position the marker, and follow the tubing manufacturer’s heating instructions. Print one sample first. Shrinking can distort characters, and Epson specifically warns that a barcode may become unreadable after the tube changes shape.[4]
Use a wrap when the cable is already finished
Heat shrink is tidy, but it is not a universal replacement for self-laminating tape. Existing Ethernet, fiber, and control patch cables often cannot be disconnected just to slide on a tube. A wrap or flag is easier to service and replace. Our heat-shrink versus self-laminating guide covers installation stage, sizing, durability, and rework, while the broader cable and wire labeling guide compares the full range of formats.
For a network-specific shortlist where finished patch cables and rack density drive the choice, use the network cable label-maker guide.
Check the environment separately
Brady describes multiple wire-and-cable media families for different applications, including heat shrink, self-laminating, and wrap-around constructions.[7] Verify the exact material’s resistance and temperature information for the installation. The printer accepting a cartridge does not certify the finished marking for outdoor exposure, chemicals, abrasion, or a particular project standard.
Final recommendation
Choose the Brother PT-E560BTBP when identifiers come from a prepared wire list or when one printer must also cover broader electrical work. Choose the Epson LW-PX700 for a standalone Epson tubing workflow, the PX400 for connected preparation, and the Brady M210 Kit for short disconnected jobs using known M21 supplies.
Before ordering, write down the cable outside diameters, whether the cables are already terminated, and the environments they will face. Then price the exact tubing cartridges, not just the printer. That short check prevents the most expensive heat-shrink mistake: owning a printer that supports the idea, but not the tube your job requires.
If heat shrink is only one part of a broader trade workflow, the electrician label-maker comparison weighs panel formats, connected tools, and complete kits alongside tubing support. Buyers with a strict ceiling can also compare industrial label makers under $200.
FAQ (Frequently Asked Questions)
What is the best heat-shrink label maker?
The Brother PT-E560BTBP is the best overall choice because it supports Brother HSe heat-shrink media, works from a keyboard, phone, or computer, and has formats for wire, cable, and panels. The Epson LW-PX700 is the strongest standalone alternative.
Can any label maker print on heat-shrink tubing?
No. The printer must explicitly support a compatible printable heat-shrink cartridge or roll. A regular laminated tape printer is not automatically compatible with tubing.
How do I choose heat-shrink label size?
Measure the cable outside diameter, check the tubing part number's supplied diameter range and shrink ratio, and leave enough room for the tube to slide over the cable or connector before termination. Media width is not the same measurement as cable diameter.
Can I use heat-shrink labels on an already terminated cable?
Usually no, because the tube cannot pass over the connector. Use a self-laminating wrap or flag for an installed patch cable unless the connector can be removed and safely reterminated.
Are heat-shrink labels permanent?
They can provide a secure, clean marker when the tubing and installation process suit the cable and environment. The printer does not decide temperature, chemical, abrasion, or voltage suitability; verify the exact media documentation.
Is printable heat shrink better than wrap-around tape?
Neither is universally better. Heat shrink is tidy and difficult to move once installed, but it must be fitted before termination and requires the correct tube size. Wraps are easier to apply to finished cables and are often more practical for service work.
Does a heat-shrink label make wiring code compliant?
No. It produces an identifier. The finished marking still has to meet the project specification, employer procedure, customer requirements, and applicable rules.
