Buy the Brady M210 if your labels are typed at the job and the printer has to withstand field use. Buy the Brother PT-E560BT if the same printer has to work standalone in the field and also print from a phone, a computer, or a spreadsheet. The gap between them is not feature count. It is whether your identifiers already exist as data somewhere before you reach the cable.
The M210 is a deliberately simple tool: no connectivity, an ABC keypad, a manual cutter, and Brady’s published drop, crush, and shock testing.[1] That simplicity is a feature when the alternative is pairing a phone while standing on a ladder. The PT-E560BT is a different class of workflow, combining a keyboard, Bluetooth 5.0, USB-C, stored databases and templates, 24 mm media, and a dual auto-cutter that produces half-cut strips.[7]
Choose neither if you need media wider than 24 mm, much higher resolution for dense two-dimensional codes on tiny labels, a desktop platform for sustained production volume, or a specialty material that neither the M21 nor the Brother tape families supply. Our cable and wire labeling guide works through that media-first decision before any printer is chosen.
We compared current US manufacturer documentation for both printers on 2026-07-28. Prices and bundle contents move, so verify them before you buy.
The quick comparison

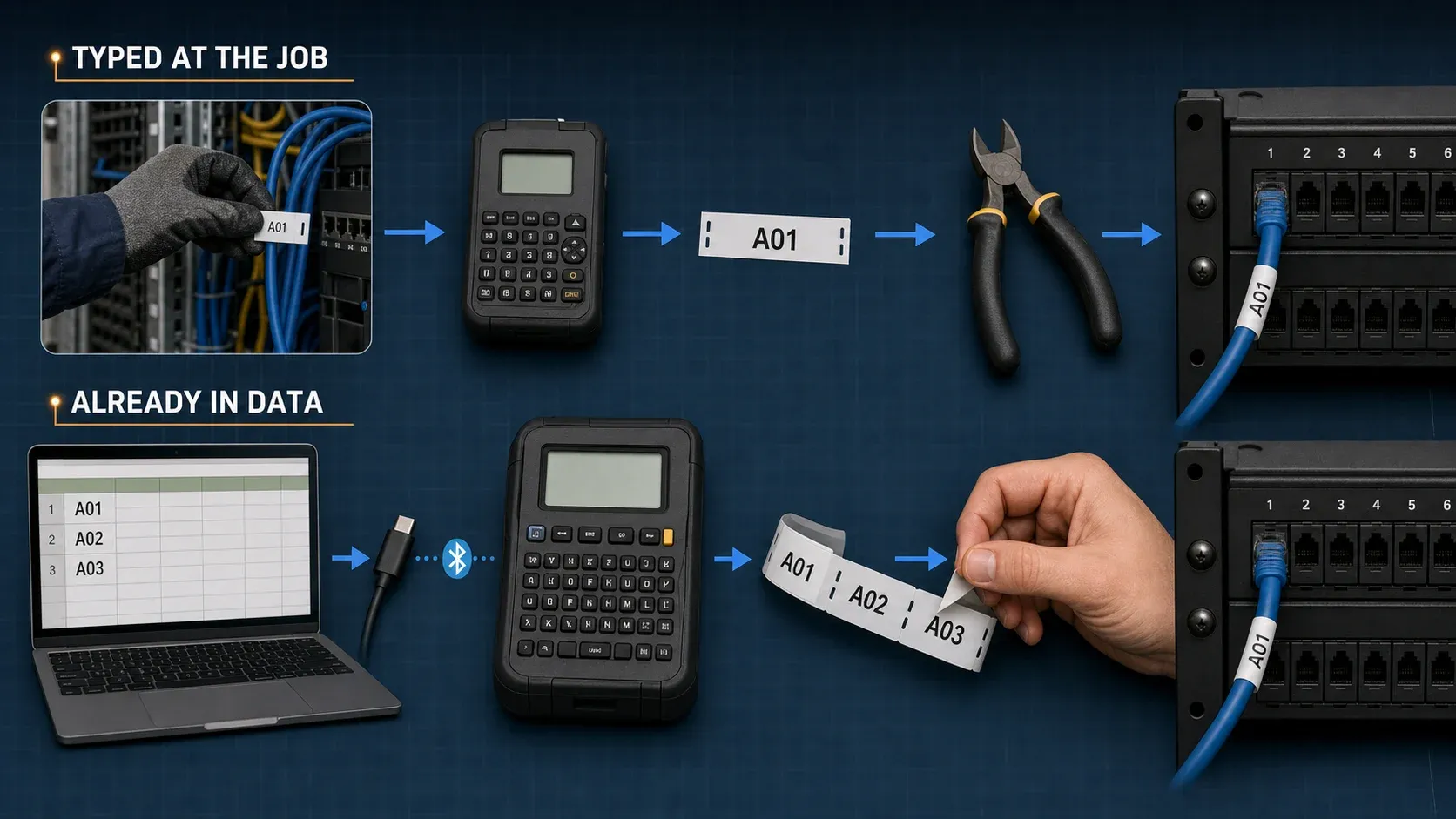

The real difference is where your labels come from
Both printers put a legible identifier on a cable. The question is what happens before that.
On the M210, every new identifier must be entered on the device. Brady confirms the printer is standalone, with all design done on the device and no USB or Bluetooth connection to a computer or phone.[1] For a technician fixing a panel, that is a clean loop: drop in a cartridge, type, print, cut. Brady also designed the tool around a stated scale of up to 100 labels per day.[3]
On the PT-E560BT, keystrokes are one of three inputs. The printer accepts a CSV database directly, the Pro Label Tool app pushes labels from a phone, and P-touch Editor for Windows reads txt, CSV, xls, xlsx, mdb, and accdb files over USB-C.[7] When a rack schedule already exists as a spreadsheet, that difference removes the retyping step and the transcription errors that come with it.
That is the whole comparison in one sentence: the M210 is optimized for labels that are decided at the cable, and the PT-E560 is optimized for labels that were decided earlier.
Brady M210 Portable Label Printer Kit
A rugged, self-contained M21 printer for wire, cable, panel, and equipment labels that get typed at the job.
- Brady publishes 6-foot drop, 250 lb crush, and MIL-STD-810G shock testing
- No app, pairing, or computer in the workflow
- Broad M21 media family including PermaSleeve heat shrink and self-laminating wraps
- ABC keypad and manual cutter
- 19.05 mm maximum media width
- Brady Authentic cartridges only, and no data import
If you click this link and buy, we may earn a commission at no additional cost to you.
Brother P-touch EDGE PT-E560BTBP
A hybrid handheld that works from its own keyboard or from a phone, computer, or CSV file, with 24 mm media and a half cutter.
- CSV and template workflow on the printer, phone, and Windows PC
- Automatic full and half cutting for peel-in-order strips
- 24 mm media and 99 stored files
- Roughly three times the entry price of an M210
- No published drop or crush rating
- Self-laminating tape support is not clearly documented for this model
If you click this link and buy, we may earn a commission at no additional cost to you.
The ordering above is by scenario, not by ranking. Neither printer outranks the other in general.
Field hardware and daily usability
The M210 uses an ABC keypad and a backlit monochrome display, and it accepts 6 AA batteries as well as an optional rechargeable pack.[3] The AA option matters more than it sounds. A dead pack on a Friday afternoon is a trip to a gas station rather than a lost afternoon.
The PT-E560BT uses a QWERTY layout with rubber keys, a 240 by 120 backlit display with real print preview, and a BA-E001 Li-ion pack charged over USB-C, with an optional AC adapter that cuts charge time to about three hours.[8] It is the more comfortable machine for long text entry and the more informative one before you commit tape. It is also the heavier tool at about 2.31 lb without cassette and battery.[8]
One specification worth noting for outdoor trades: Brother lists an operating range of 50 F to 95 F for this family.[7] That lower limit is worth knowing before a winter service call in an unheated plant.
Media ecosystems
Brady’s M21 catalog is the M210’s whole world. Brady states the printer works exclusively with Brady Authentic M21 cartridges, which combine label supply and ribbon in one drop-in unit.[1][4] The catalog is deep, covering nylon cloth, vinyl, polyester, PermaSleeve heat shrink, and self-laminating wrap-around labels for wire and cable.[6] The constraint is sourcing: there is no third-party cartridge market to fall back on, and the maximum width stops at 19.05 mm.
Brother lists HGe, TZe, HSe, and STe as the compatible tape families for the PT-E560BTBP, in widths from 3.5 mm to 24 mm.[7] The current consumables list includes TZe-FX flexible ID tape in 6, 9, 12, 18, and 24 mm, strong-adhesive TZe-S, high-grade HGe, and HSe heat-shrink tubes.[9] For curved cable jackets, TZe-FX is the format that does most of the work.
The extra 5 mm of width is not a rounding difference. Brother’s printable height reaches 0.71 in against the M210’s 0.63 in, which is the difference between a comfortable two-line equipment label and a cramped one, and it gives cable flags more usable face.[8][3]
The self-laminating question
This one deserves care, because it is a common cable-ID format and the documentation does not line up.
Brady is unambiguous. Self-laminating vinyl wrap-around labels are a current M21 family listed for M210 and M211 printers.[6]
Brother is not. The current P-touch EDGE datasheet lists media for this printer family as HGe and TZe tapes, HSe heat shrink, STe stencil, and SLe self-laminating, and it lists Self-Laminate among the printer’s function keys.[8] The PT-E560BTBP product page, however, gives compatible tape families as HGe, TZe, HSe, and STe, and self-laminating stock does not appear in the consumables list we reviewed, which does include flexible ID, strong adhesive, stencil, and heat shrink.[7][9]
The printer appears to have a self-laminating function, but we cannot confirm a specific current US self-laminating part number for it from Brother’s own compatibility list. If self-laminating wraps are central to your work, either confirm the exact part number with Brother first, plan on TZe-FX flexible ID instead, or choose the M210, where the format is clearly documented. If you are still deciding between formats at all, our heat-shrink versus self-laminating comparison covers when each one is the right answer.
Heat-shrink workflow
Both printers do this job properly, and neither ecosystem wins on catalog size.
Brady’s PermaSleeve B-342 sleeves are 3:1 polyolefin. The 3/16 in part is supplied at 0.187 in and recovers to 0.062 in, is designed for 20 to 10 AWG conductors measuring 0.062 in to 0.15 in, and comes on a 7 ft cartridge with UL Recognition to UL 224 and SAE and MIL-STD test references.[5]
Brother’s HSe cassettes hold 1.5 m of tube and span both older 2:1 sizes and newer 3:1 sizes.[9] A current 3:1 example, HSE251EG, is a 21.0 mm supplied tube recommended for cables of 4.2 mm to 13.5 mm.[10]
Two practical points follow. First, cartridge length differs by more than a factor of one and a half, so cost per usable marker is the number to compute, not cost per cartridge. Second, tape width is not tube diameter. A printer that accepts 24 mm tape does not thereby fit a 24 mm cable. Start from the measured cable outside diameter and work back to a part number, which is exactly the method in our heat-shrink label-maker guide.
Cable, panel, and datacom formats
Both printers ship with the application modes the trades actually use, which is what separates either of them from an office labeler.
Brady provides on-device guides including flags, patch panel, terminal block, and wire wrap.[3] Brother provides 10 keys covering 13 functions including general, faceplate, cable wrap and heat shrink tube, cable flag, patch panel and terminal strip, punch block, barcode, serialize, advanced serialization, and database, plus a 477-symbol library with 109 electrical symbols and a patch panel ruler in the box.[8]
For code work, the M210 generates UPC, DataMatrix, and QR codes on the device.[3] The PT-E560BT adds nine linear symbologies alongside QR and Data Matrix.[8] If you are tagging assets against a system that expects a specific symbology, check that list before assuming either printer covers it.
Batch printing, templates, and data
Batch work is where the price difference is most likely to matter.
The M210 stores up to 12 label files.[3] That is enough to keep a few recurring formats at hand. It is not enough to hold a project’s worth of layouts, and there is no way to load a list.
The PT-E560BT stores up to 99 files created on the printer and accepts up to 99 downloaded templates, databases, and images within 6 MB of transferred data.[8] Combined with CSV import, that turns a rack schedule into a print job instead of a typing job.[7]
Consider what that means for a 96-port patch panel. On the M210, someone types 96 identifiers, prints them, and cuts 96 times. On the PT-E560BT, the same list arrives as a file and leaves the printer as a half-cut strip. We have not timed either sequence, so treat this as reasoning from documented capabilities rather than a measured result: both printers still have to print every label, but importing the identifiers and half-cutting the strip remove most of the repeated data-entry and cutting work.
The cutter is a bigger deal than it looks
The M210 uses a manual straight cutter with label retention, so the cut label does not drop into a panel or onto a wet floor.[3] For a handful of labels, this is completely fine and arguably faster than waiting for a mechanism.
The PT-E560BT has an automatic full cutter and a half cutter, and Brother’s design intent is a printed strip of half-cut labels that peel individually.[7] On a long serialized run, that keeps the labels in order and keeps both hands free.
Automatic is not universally better. It adds a mechanism to a field tool, and specialty materials do not all behave the same way through a cutter. Follow the supply instructions for the exact media rather than assuming any automatic cutter is appropriate for every tube or tape.
Ruggedness, and why the comparison is asymmetric
Brady states the M210 has been tested to withstand a 6-foot drop, 250 lb of crush force, and military-grade shock to MIL-STD-810G, with an overmolded body.[1]
Brother documents drop prevention differently: an ambidextrous hand strap and utility ring, plus a protective case in the kit variants.[8] That is a design response, not a rating, and we found no equivalent published drop or crush figure for this model.
Brady wins the documented-ruggedness row because it published numbers. Absence of a published figure is not evidence that the Brother is fragile. If a specific drop rating is a purchasing requirement on your projects, only one of these two currently gives you something to put in a submittal.
What the complete system costs
Brady lists the M210 at $99.99 with a starter cartridge and the M210-KIT at $199.99, where the kit adds a hard case, a rechargeable Li-ion battery, and an AC adapter and charger.[1][2] Brother lists the PT-E560BTBP at $354.00 with six tapes.[7]
For field use, the M210 kit is a more useful comparison than the bare printer. It narrows the gap to roughly $154 before consumables. Whether that remaining gap is worth paying depends on how often identifiers arrive as data and how much labor import and half cutting would save. For occasional short runs typed at the job, the M210 is usually enough. Buyers with a hard budget ceiling should also compare industrial label makers under $200, where the M210 kit competes directly with keyboard-driven alternatives.
Which should an electrician buy?
If most of your labeling is panel schedules, wire markers, breaker identification, and equipment tags created on site, the M210 kit does the job with less to go wrong, and the M21 heat-shrink and self-laminating families cover the common formats.
If you build panels, do commissioning work with prepared wire lists, or repeat similar jobs across sites, the PT-E560BT earns its price through templates, serialization, and CSV import. The broader trade shortlist is in our label makers for electricians comparison.
Which should a network installer buy?
The PT-E560BT is the better fit for most structured-cabling work. Patch-panel and punch-block modes, 24 mm media, half-cut strips, and CSV import all line up with how rack labeling actually happens, and the included patch panel ruler is a small but genuine convenience.[8]
The M210 remains a sensible second printer for the van, or a first printer for a small MSP labeling a few dozen cables per month. When density and repeatability dominate, the network cable labeling guide covers the wider field.
Choose neither when
- You need media wider than 24 mm, or a printable area neither handheld can deliver.
- Your labels involve very small dense two-dimensional codes where 180 to 203 dpi is the wrong class of tool.
- Sustained production volume points to a desktop industrial printer rather than a handheld.
- The specification calls for a material outside the M21, TZe, HGe, HSe, and STe families.
- Site policy bars RF-capable hardware entirely and M21 media cannot cover the work.
- A project requires certification or documentation that neither ecosystem supplies for the exact media you need.
Final recommendation
Choose the Brady M210 when labels are created at the cable, ruggedness is a stated requirement, M21 media covers your formats, manual cutting is acceptable, and a lower entry price matters. The kit, not the bare printer, is the version to buy for field work.
Choose the Brother PT-E560BT when the same tool has to serve a keyboard workflow and a data workflow, when 24 mm media or half-cut strips would change your day, or when your identifiers already live in a spreadsheet. Confirm self-laminating compatibility with Brother first if that format is essential.
Choose neither when the width, resolution, volume, material, or site policy puts the job outside what a handheld in this class can do.
The buying question is not which printer has more features. It is whether you will spend next year typing labels or importing them.
FAQ (Frequently Asked Questions)
Is the Brother PT-E560 worth roughly three times the price of an M210?
It depends entirely on where your labels come from. If you type every label at the job, the extra money buys speed, a wider tape, and automatic cutting, which is real but modest. If your identifiers already exist in a spreadsheet or a project schedule, the CSV and template workflow can remove an hour of retyping on a single large job, and that is where the price difference pays for itself.
Can the Brady M210 connect to a phone or computer?
No. Brady states plainly that the M210 is a standalone printer with no USB or Bluetooth connection, and that every label is designed on the device. Any review claiming app or PC support for the M210 is describing a different Brady model, most likely the M211.
Does the Brother PT-E560 work without a phone?
Yes. It has a QWERTY keyboard, a backlit 240 by 120 display with print preview, and quick application keys, so it works as a self-contained handheld. Bluetooth and USB-C add a second workflow rather than replacing the first.
Which one is better for printable heat shrink?
Neither ecosystem wins outright. Brady M21 PermaSleeve cartridges hold 7 ft of sleeve, while Brother HSe cassettes hold 1.5 m, so cartridge economics differ. What actually decides it is whether your cable outside diameters fall inside the published range of a specific part number in that brand, not how many sizes each catalog contains.
Can the PT-E560 print self-laminating wraps?
Brother documentation is not consistent on this. The current P-touch EDGE datasheet lists SLe self-laminating media and a Self-Laminate function key for this printer family, while the PT-E560BTBP product page lists compatible tape families as HGe, TZe, HSe, and STe, and self-laminating tape does not appear in the current consumables list we reviewed. Flexible ID tape is clearly supported. Confirm the exact self-laminating part number with Brother before ordering.
Which printer is more rugged?
Brady publishes the harder numbers. It states the M210 has been tested to a 6-foot drop, 250 lb of crush force, and military-grade shock to MIL-STD-810G. Brother provides a hand strap and utility ring for drop prevention but does not publish an equivalent drop or crush rating for this model, so the comparison is asymmetric rather than a Brother failure.
Can I use third-party cartridges in the M210?
Brady states the M210 works exclusively with Brady Authentic M21 cartridges. That is a real ownership constraint to price in, because it removes the third-party consumable market that keeps some other ecosystems cheap.
Which should I buy for a patch-panel job driven by a spreadsheet?
The PT-E560. The database function accepts a CSV on the printer and in the Pro Label Tool app, P-touch Editor for Windows reads txt, CSV, xls, xlsx, mdb, and accdb, and the half cutter delivers a strip you peel in order. The M210 would require retyping every identifier and cutting each one by hand.
