A typical UPS can run a router and modem anywhere from minutes to several hours, but the VA label cannot predict the answer. Runtime comes from the complete network load, the UPS battery and inverter, its low-load runtime curve, battery age, and temperature.
Measure the ONT, modem, router, mesh gateway, and required switch together. Then perform a timed unplug test. That is more reliable than dividing a battery’s amp-hours by router watts because UPS conversion losses and low-voltage cutoffs are not captured by that shortcut.
For the complete preparedness and safety plan, return to Power Outage Solutions: The Complete Blackout Guide.
First, identify every box that makes the internet work
| Device | When it needs backup | Check |
|---|---|---|
| Wi-Fi router | Always for local Wi-Fi | Power adapter and measured watts |
| Cable modem | For separate cable internet equipment | Do not confuse with an all-in-one gateway |
| Fiber ONT | For fiber service when not independently backed up | May be in a garage, closet, or exterior enclosure |
| Mesh node | Only nodes required for coverage during the outage | Gateway node is normally essential |
| Switch or PoE injector | When it connects or powers essential network equipment | PoE cameras and access points add load |
If only the router is backed up, your Wi-Fi name may remain visible while the internet connection disappears. Trace the incoming fiber, coax, Ethernet, or fixed-wireless cable and find every powered device in that path.
Measure total network watts
Plug the required devices into a suitable watt meter through a simple, manufacturer-permitted arrangement. Record stable watts after startup and watch for variation under normal traffic.
Do not add adapter labels as if they were measured consumption. A router with a 12V, 2A adapter can draw less than the adapter’s 24W maximum.
Example network stack
fiber ONT: 6W
router: 11W
mesh gateway: 8W
small switch: 5W
total: 30WThat 30W measurement is the load to use with the manufacturer’s runtime curve. Removing an unnecessary mesh node or switch can produce more runtime than buying a UPS with a higher output rating.
Why VA is not a runtime rating
VA and watts describe how much load the UPS can support, not how much usable energy it stores. Two 650VA models can use different batteries and inverters. A larger VA unit may carry a desktop load better without being optimized for a tiny router load.
CyberPower rates the ST425 at 425VA and 260W, with six minutes at half load and 1.5 minutes at full load.[1] Half load is 130W, far above many network stacks. Extrapolating a straight line down to 15W can be wrong because inverter overhead becomes a larger fraction at low load.
The SX650U uses a larger 12V, 5.5Ah battery and publishes nine minutes at half load and two minutes at full load.[2] Again, those points establish comparative behavior at substantial loads, not a promise at router load.

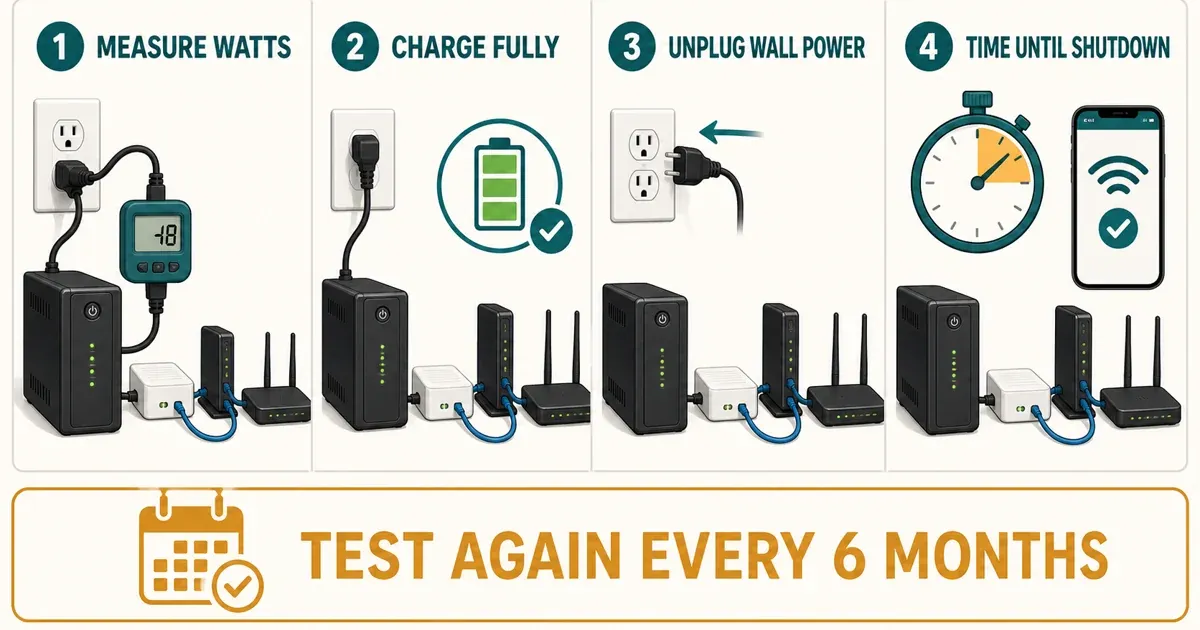

The only dependable method: a controlled runtime test
- Fully charge the UPS according to its manual.
- Confirm the battery is healthy and the self-test passes.
- Connect only the required ONT, modem, router, gateway, and switch to battery-backed outlets.
- Leave nonessential chargers and printers disconnected.
- Start a timer and unplug the UPS from the wall without switching it off.
- Confirm internet access from a phone with cellular data disabled.
- Record when low-battery alarms begin and when service stops.
- Reconnect utility power before exhausting the battery if the manufacturer recommends avoiding a deep test.
Run the test when losing internet will not create a safety or work problem. Do not test medical, security, or life-safety dependencies casually.
Planning estimate when you cannot test yet
If the manufacturer publishes usable watt-hours or a runtime curve near your load, use it. Otherwise, battery voltage multiplied by amp-hours gives nominal battery energy:
nominal battery Wh = battery volts × amp-hoursA 12V, 5.5Ah battery is nominally 66Wh. You cannot assume all 66Wh reaches the router. Lead-acid discharge behavior, inverter loss, UPS overhead, cutoff voltage, battery condition, and load reduce delivered energy.
This is why a nominal calculation is a rough screen only. Use the runtime curve and test.
How to extend router runtime without a bigger UPS
- Back up only the gateway mesh node unless other nodes are needed.
- Remove printers, speakers, monitors, and phone chargers.
- Power a laptop from its internal battery.
- Shut down nonessential PoE cameras or access points if appropriate.
- Replace an old UPS battery with the exact approved cartridge when the model supports user replacement.
- Keep the UPS within its specified temperature range and unobstructed.
Do not disconnect an ONT, modem, or injector that the internet path requires.
When a portable power station is better
A UPS is strongest at automatic continuity. A portable power station is often stronger at multi-hour energy storage. For an eight-hour target, calculate network energy:
30W network × 8h = 240Wh before lossesA 300Wh-class battery might appear sufficient, but AC conversion and reserve need to be included. Direct compatible DC output can reduce conversion stages, but voltage, polarity, connector, and manufacturer approval must match exactly.
Use How Big a Power Station Do I Need for a Power Outage? for longer-duration sizing.
Choosing the UPS
Our best UPS for a modem and router guide recommends compact units for network-only loads and larger sine-wave units only when a computer, NAS, or other equipment justifies them.
Check:
- battery-backed outlet count;
- runtime curve near the measured load;
- battery replacement method;
- audible-alarm controls;
- wall-mounting or shelf dimensions;
- transfer time;
- waveform requirements;
- USB monitoring and supported software;
- operating temperature and warranty.
Why runtime decreases over time
Most compact UPS units use sealed lead-acid batteries. Capacity declines with age, heat, storage, and cycling. CyberPower notes that its published runtime curves use fully charged new batteries under normal conditions and that age, charge, environment, and other variables affect results.[3]
Retest periodically. A UPS that lasted two hours when new may not repeat that result years later.
Final answer
Do not estimate router runtime from 600VA or 1500VA. Measure every required network device, consult the exact low-load runtime curve, and conduct a controlled outage test.
For brief outages, a compact UPS is usually enough. For several hours, remove nonessential network loads and compare a larger UPS with a portable power station. Most importantly, verify that the provider connection remains alive. Battery-backed Wi-Fi without an upstream signal is only a powered local network.
FAQ (Frequently Asked Questions)
How long does a 600VA UPS run a Wi-Fi router?
VA does not provide enough information to calculate runtime. Measure the watts of every required device and use the exact UPS runtime curve. A router-only load may run much longer than the manufacturer’s half-load figure, but battery age, inverter overhead, and the modem or ONT can change the result substantially.
Can a UPS run a router for eight hours?
Some large UPS units or very low-power DC backup systems may, but a normal compact AC UPS is often designed for shorter continuity. Measure the complete network stack and conduct a timed test. For multi-hour backup, compare a portable power station or dedicated compatible DC UPS.
Why is the router on but the internet is down?
The modem, fiber ONT, PoE injector, network switch, or provider equipment may have lost power. A lit router proves only that the local Wi-Fi network has power. It does not prove that the upstream internet path is operating.
Can I plug a power strip into a UPS?
Follow the exact UPS manual. Do not daisy-chain power strips, surge protectors, or UPS units unless the manufacturer explicitly permits the configuration. Use the UPS outlets directly and choose a model with an appropriate outlet layout.
How often should I test my router UPS?
Run a controlled test after installation, after changing network equipment, and periodically according to the UPS manufacturer’s maintenance guidance. Sealed lead-acid batteries lose capacity with age and temperature, so an old runtime result should not be treated as permanent.
